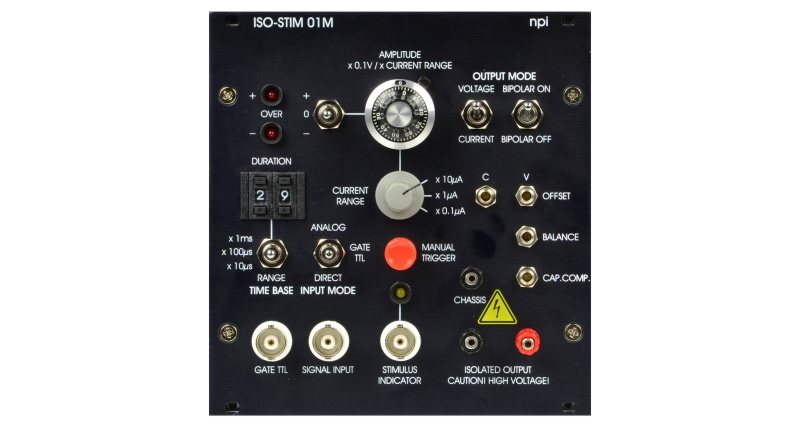

ISO-STIM-01M – Isolated Stimulator Module

Add to Wishlist Remove from Wishlist

Stimulus Isolator Module

  • Bipolar stimulation with up to +/- 100 V (+/- 10 mA)
  • TTL triggered stimulation pulses
  • Any analog input signal can be transferred as an isolated output signal
  • Also available as stand-alone device



Categories: ,

Features

  • NO batteries needed
  • ISOLATED OUTPUT
  • Three input modes: ANALOG, GATE TTL, DIRECT
  • Stimulus AMPLITUDE set by three digit control and a RANGE switch (CURRENT) or by an external source, e.g. a data acquisition system
  • Stimulus duration set by two digit control from an internal, digital timer (10 ìs to 99 ms) or by an external source
  • Stimulus polarity set by switch (+, 0, -) or by data acquisition system
  • Current (±10 mA) or voltage (±100 V) source output
  • “Overrange” and “active” LED indicators
  • Capacitance compensation for the electrode capacitance

Combine with

  • EXT-10C (extracellular amplifier module)
  • DPA 2FX (amplifier / filter module)
  • BA-01M (intracellular amplifier)

to get a complete system for stimulating, extracellular and intracellular recording.

Also available as stand-alone device in small desktop housing.

Ordering

Part no. Description
ISO-STIM 01M-100 Stimulus isolation module (+/-100V, +/- 10 mA), with bipolar stimulus output, width = 2
ISO-CAB-M Cable set for connecting the stimulation electrode

Technical Data

INPUT OPERATING MODES: DIRECT, ANALOG TRIGGER, TTL TRIGGER, selectable with toggle switch
FUNCTION MODES: voltage source, current source, selectable with toggle switch
SOURCE RANGES: ±10 mA (current source), ±100 V (voltage source), selectable with toggle switch
TIME RANGE FACTORS: x10 µs, x100 µs, x1ms, selectable with toggle switch, time range up to 99 ms
AMPLITUDE POTENTIOMETER: 3 digits, ±10 V or ±10 mA max., polarity selectable with toggle switch
CURRENT RANGE FACTORS: x0.1 µA, x1 µA, x10 µA, selectable with toggle switch
TIME POTENTIOMETER: 2 digits, 0 – 99 as multiplication factor selectable
INPUT VOLTAGE RANGE: ±10 V, amplified internally with gain of 10 (voltage source) or gain of 1 (current source)
OUTPUT VOLTAGE: ±100 V max., isolated
OUTPUT CURRENT: ±10 mA max., isolated

Downloads

Manual Iso Stim 01M manual
Brochure ISO Series

References:
ISO Reference List
