EXT-10C – Extracellular Amplifier

Add to Wishlist Remove from Wishlist

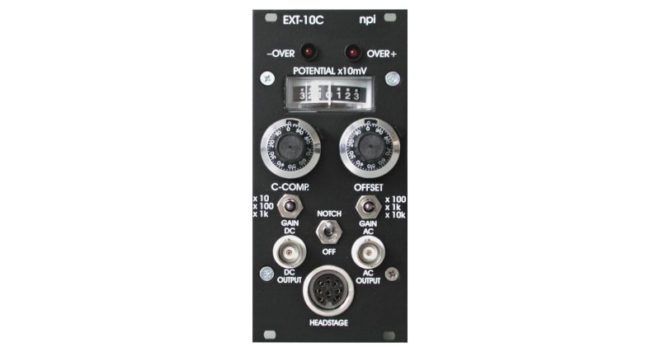

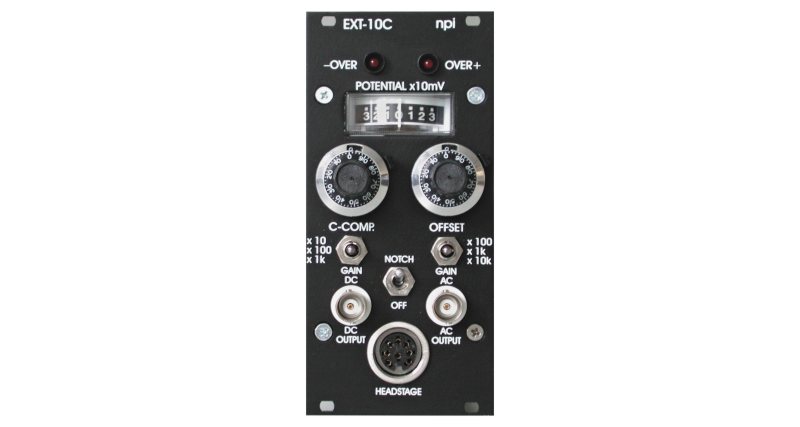

EXT-10C Extracellular amplifier

  • record fast signals with capacitance compensation
  • easy compensation set of DC offsets
  • comes with pre-amplifying headstage
  • a similar module without capacitance compensation is the EXT-10-2F

Features

  • Capacity compensation (0-30 pF) for recording fast signals
  • Small headstage with holding bar or mounting plate
  • Ten-turn OFFSET control (±10V)
  • OUTPUT: DC x10, x100 or x1k mV
  • AC x100, x1k or x10k mV
  • NOTCH filter 50 Hz or 60 Hz for AC output (optional)
  • OVER LEDs (activating at 10% below maximum output)
  • Analog BALANCE monitor (±30 mV) for optimal
  • OFFSET control
  • Differential input, high impedance

Ordering

Part no. Description
EXT-10C Amplifier module with capacity compensation, with headstage, width = 1
EXT-10-2F Amplifier module with with filter and gain; with headstage, width = 1
EXT-N 50/60 Hz notch filter
EXT-EH Electrode hoder, BNC

Technical Data

DIFFERENTIAL INPUT CMR >90 dB at 1 kHz
INPUT RESISTANCE >1012 Ω, range ±1 V
OUTPUT DC impedance 50 Ω, selectable gain (x10, x100, x1k)
OUTPUT AC impedance 50 Ω, selectable gain (x100, x1k, x10k)
corner frequency 0.1 Hz
OFFSET COMPENSATION 10 turn potentiometer, ±1 V (Gain x10)
POTENTIAL MONITOR analog display for the electrode offset, range ±300 mV (Gain x10)
CAPACITY COMPENSATION 0-20 pF, 10 turn potentiometer
NOTCH FILTER (optional) 50 Hz or 60 Hz, 4-pole, for AC output
DIMENSIONS front panel 12 HP (60.6 mm) x 3U (128,5 mm), 7 inch (175 mm) deep
HEADSTAGE SIZE 70x26x26 mm
Holding bar
length: 150 mm; diameter: 8 mm.

Downloads

Manual EXT-10C manual
Brochure EXT-Series
