VCPlus – Pressurized Perfusion System for Focal Perfusion

Add to Wishlist Remove from Wishlist

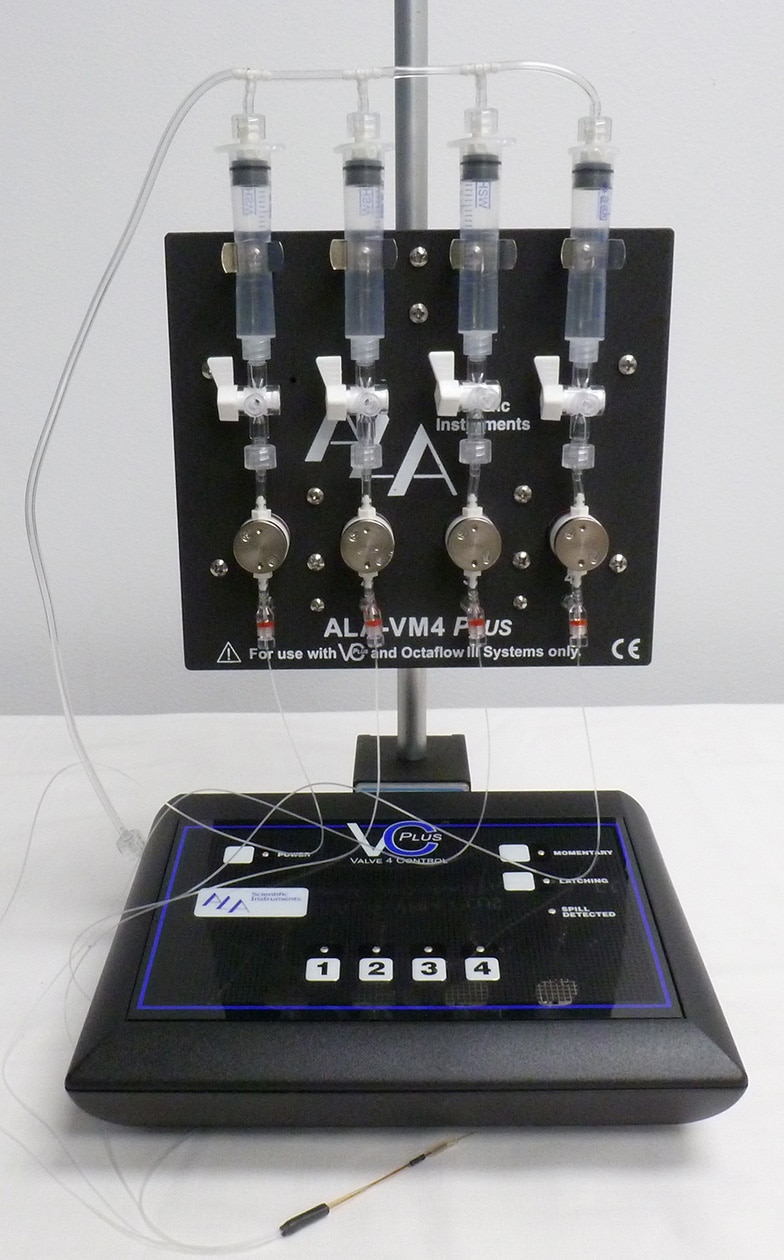

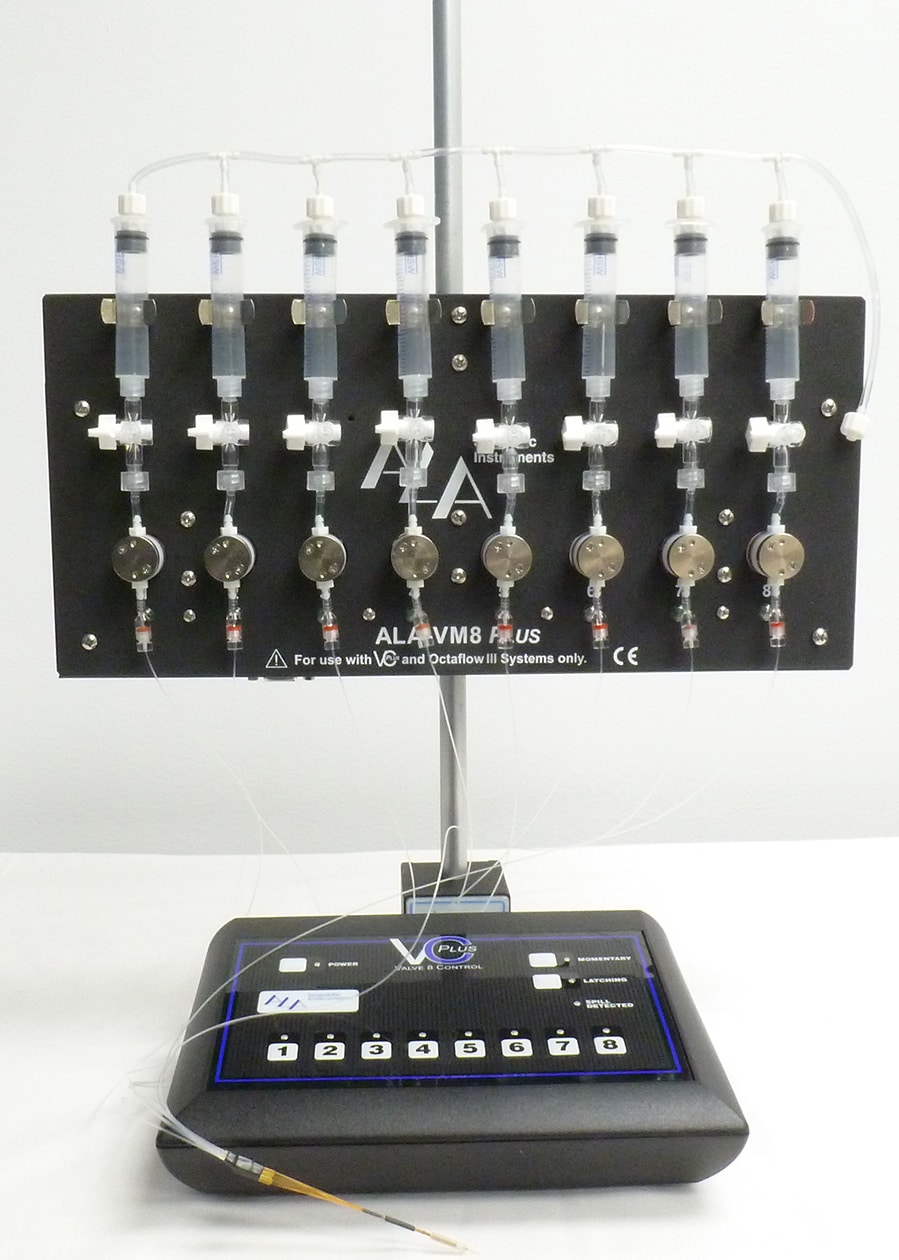

  • 4 & 8 channel versions
  • Electronics compatible with electrophysiology
  • Low maintenance pinch valves or fast response isolation valves
  • Comes with free control software
  • Comes complete with all tubing
Categories: ,

Details

Each VCPlus-8xP Series system includes the following:

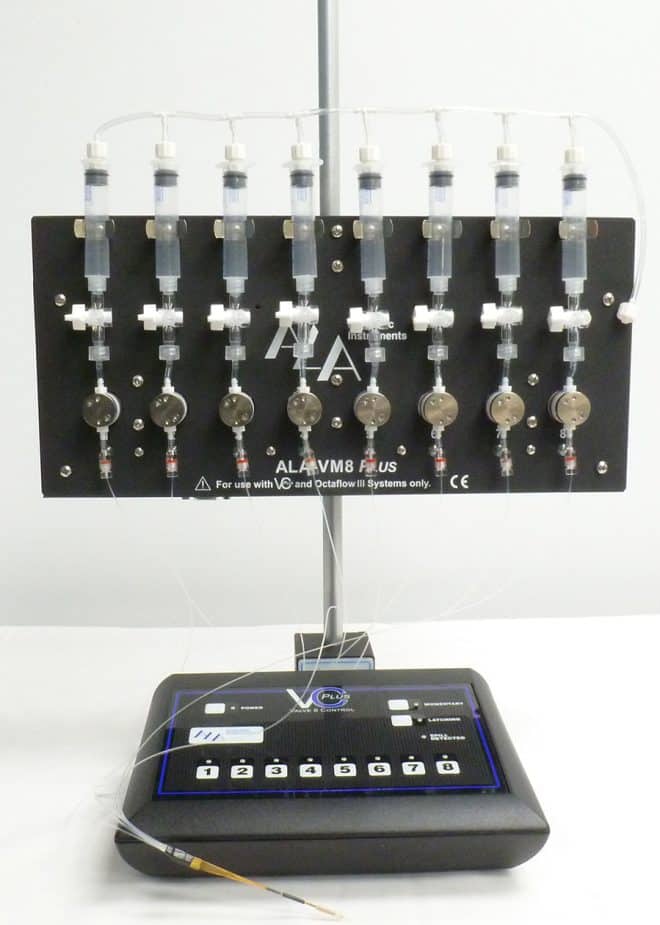

  • Magnetic stand with 1 x pole

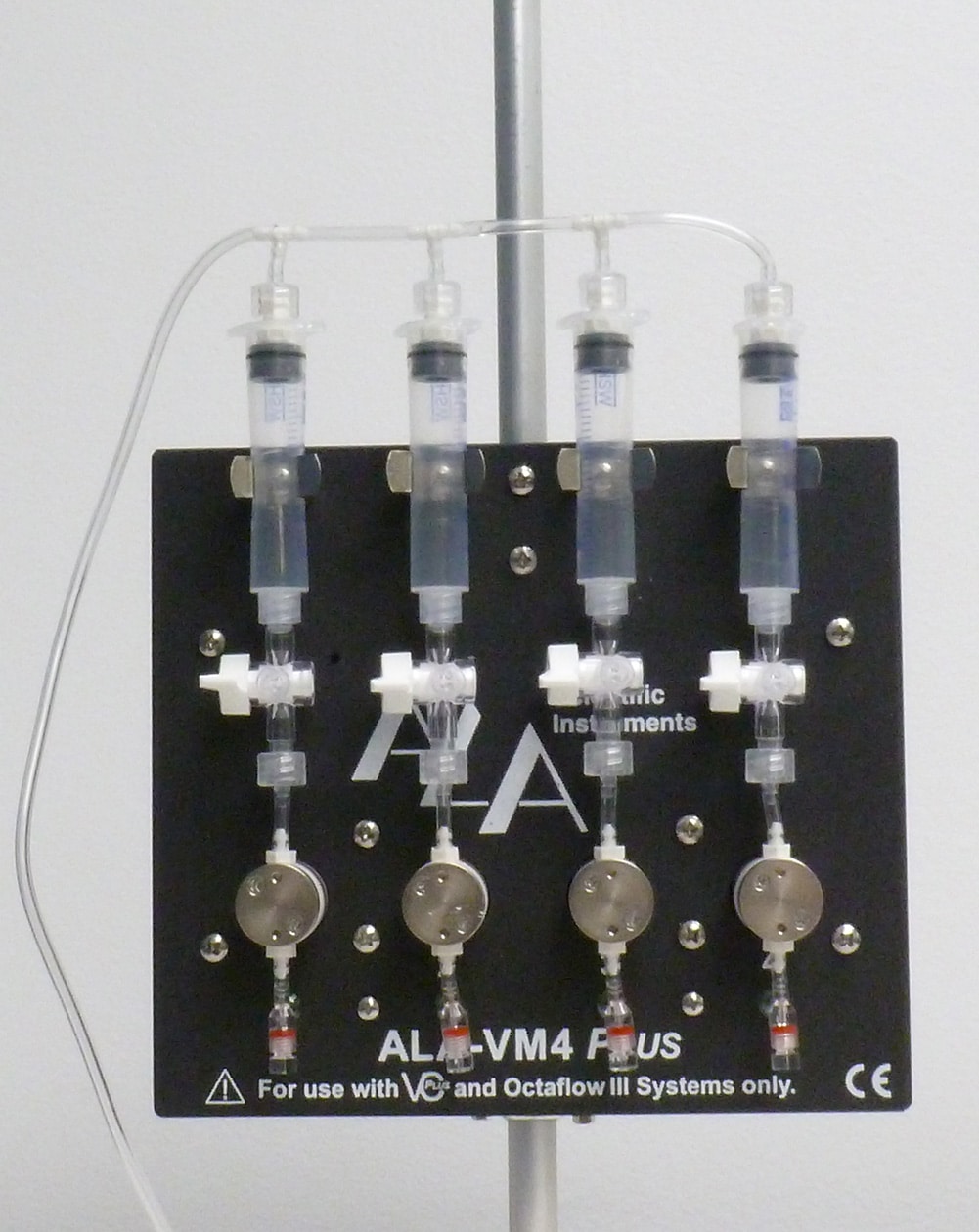

  • Valve manifold with isolation or pinch valves and 5mL pressurized
    syringe reservoirs

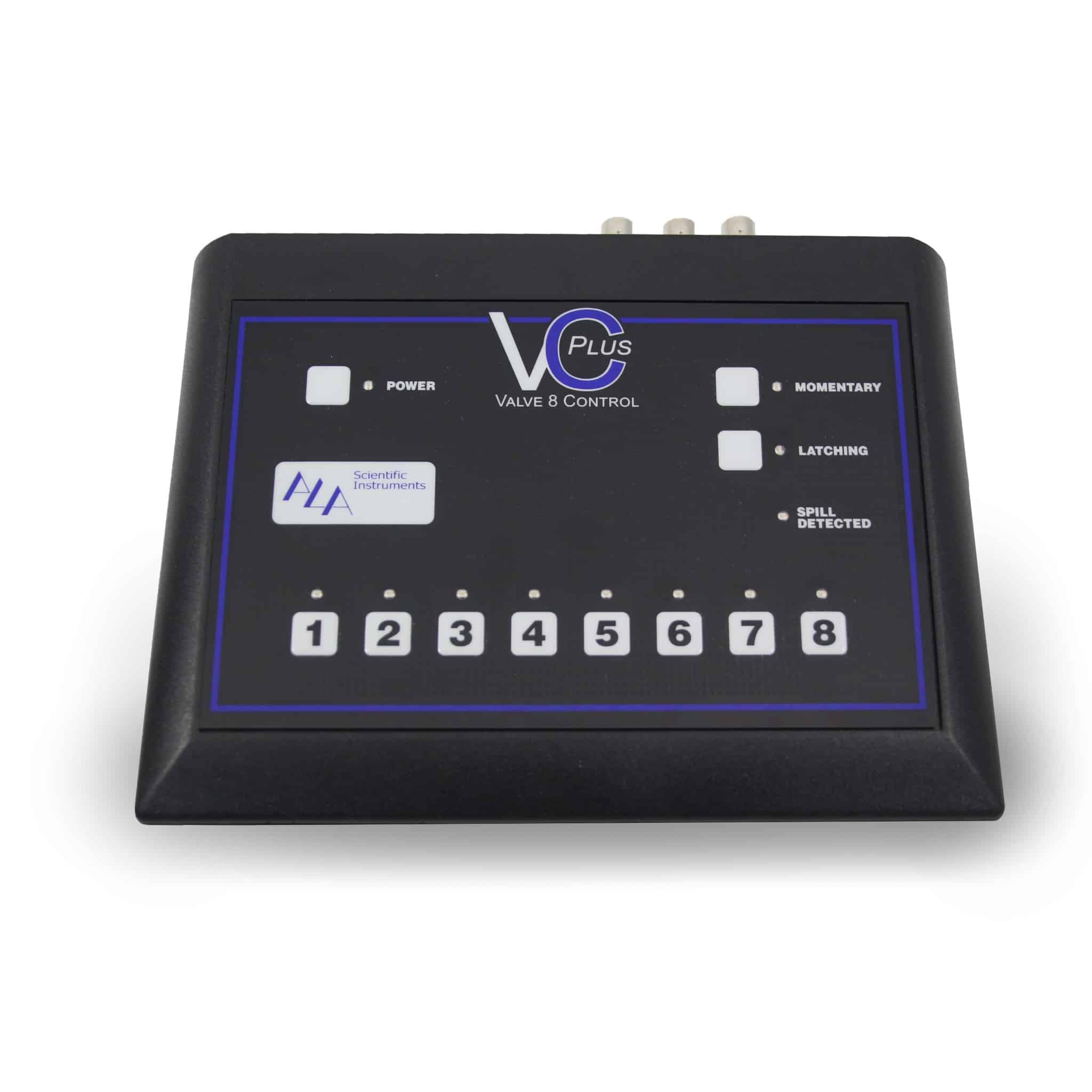

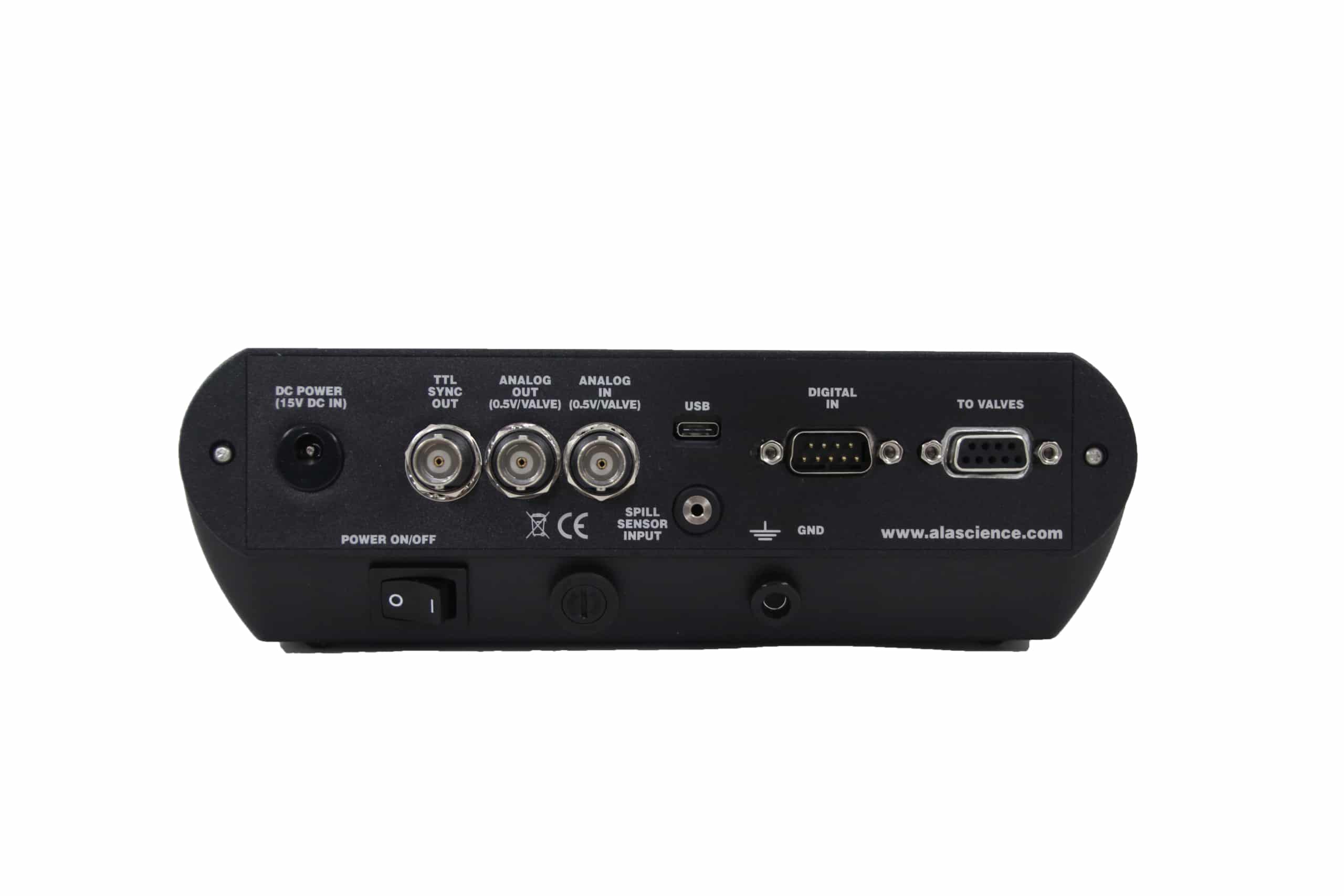

  • VCPlus electronic valve controller with a USB-C cable and software
  • DB9-CABLE controller to valve manifold cable



Need to be ordered separately:

  • Compression Fittings, CF-1’s, and Quartz MicroManifold ® QMM for fast focal applications
  • PR-10 Pressure regulator controller

Additional options include:

  • Glass reservoirs for volatile solutions
  • Spill sensor: used to detect spills around the microscope to prevent damage to expensive optics
  • Flow Control Valve, FCV-1: manual pinch valve with thumb screw to adjust output flow rates from the output of the MMF-8 or MLF-8
  • 5ml or 10ml syringe reservoirs

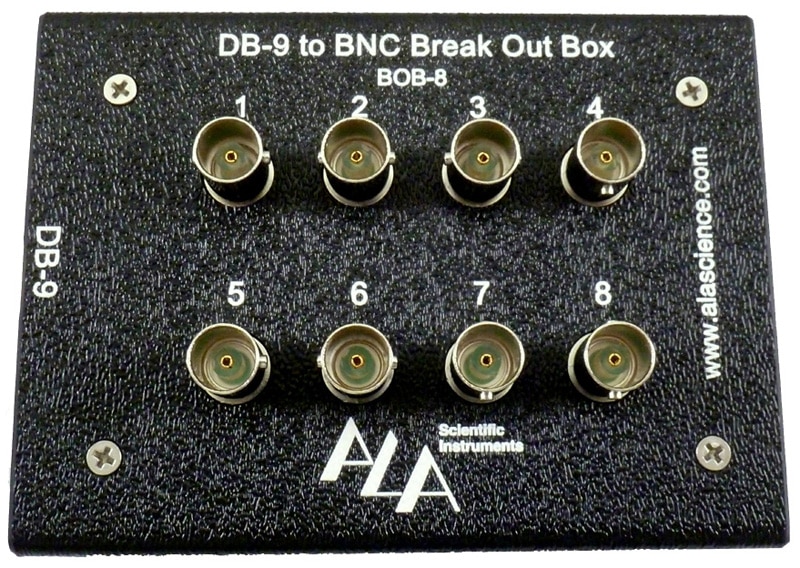

  • Breakout Box: BOB-8 for TTL trigger inputs

Valves

Each VCPlus-8xG Series system features a choice of valves:

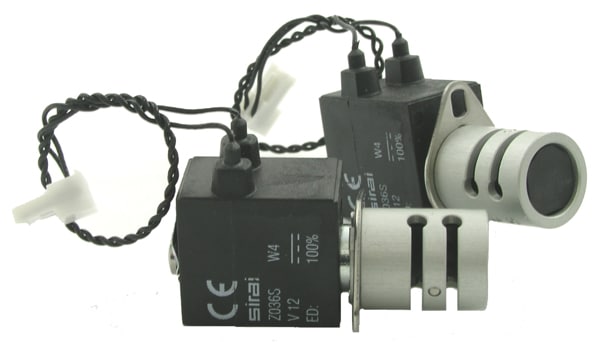

  • Pinch valves : The 3-way normally open and normally closed pinch valves require minimal maintenance in long-term perfusion experiments and have response times of 15 – 20 ms.

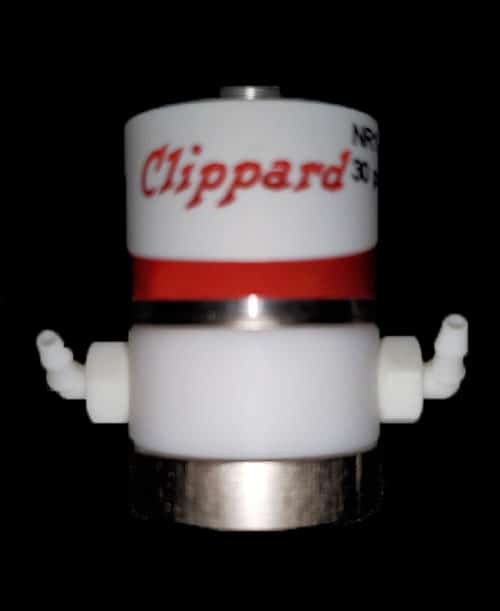

  • Isolation valves: These 2-way normally closed isolation valves  are optimized for high-speed solution exchange. These valves are completely isolated when closed and have response times of 2 – 3 ms.

Technical Data

Valve Controller:

  • Dimensions/Weight: 8″/20.32 cm x 6″/15.24 cm x 2.5″/6.35 cm / 1.5 lbs/0.68 kg
  • Power: 15 VDC/3.15 A
  • Computer Control Input: Analog input 0.5 V/valve; TTL high 1 bit/valve; USB 2.0
  • Computer Output Monitoring: Analog output 0.5V/valve; Sync TTL high
  • Manual Control: Membrane switch 1/valve; mom on/off or toggle on/off

Valve Manifolds:

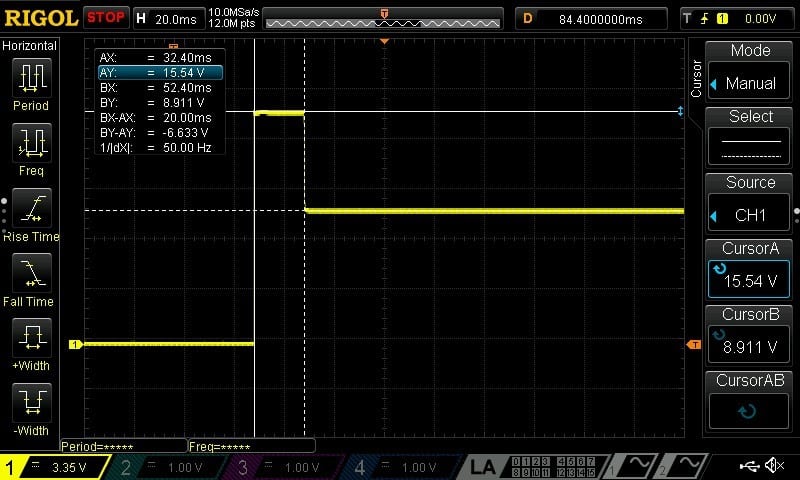

  • Pinch Valves: 12 VDC/0.25 A each- 3-way normally open or normally closed pinch valves
  • Pinch Valve Opening Speed: 15 to 20 ms
  • Pinch Valve ID Tubing: 0.020″/0.5 mm
  • Isolation Valves: 12 VDC/0.25 A each
  • Isolation Valve Opening Speed: 2-3 ms
  • Reservoirs : 5 mL pressurized syringes with 3-way stop cock luer valves

Sample pressurized flow rate: 1 mL in 9 minutes @ 10 PSI / 70 kPa through QMM with 100 μm ID tubes

Ordering

PART# DESCRIPTION
ALA-VCPlus-8PP 8 Channel Pressurized Perfusion System: pinch valves, magnetic stand with pole, valve manifold, 5mL pressurized reservoirs, VCPlus-8C controller and power supply, cable, and software. 8 x CF-1’s and QMM-8WT or MLF-8 and tubing not included and MUST be ordered separately.
ALA-VCPlus-8CLP 8 Channel Pressurized Perfusion System: isolation valves, magnetic stand with pole, valve manifold, 5mL pressurized reservoirs, VCPlus-8C valve controller and power supply, cable, and software. 8 x CF-1’s and QMM-8WT or MLF-8 and tubing not included and MUST be ordered separately.
ALA-VCPLus-8C 8 channel VCPlus electronic valve controller including power supply, cables and software
ALA-VC3-PS VCplus electronic valve controller power supply
ALA-QMM-8 Quartz MicroManifold® 8 to 1 channel perfusion outlet manifold with 100um or 200um ID (please specify) tubing and tip (other sizes available – please call or email to inquire)
ALA-QMM-8WT Quartz MicroManifold® 8 to 1 perfusion outlet manifold with 100um or 200um ID (please specify) tubing and tip (other sizes available – please call or email to inquire) and clear teflon tubing installed
ALA-MLF-8 MilliManifoldTM 8 to 1 channel perfusion outlet manifold made of 500um ID polyimide tubing with 1/16″ barb fittings
ALA-60mlRES 60mL pressurized reservoir assembly with 3-way luer valve
ALA-10mlRES 10mL pressurized reservoir assembly with 3-way luer valve
ALA-5mlRES 5mL pressurized reservoir assembly with 3-way luer valve
ALA-PV Replacement pinch valve
ALA-CL Replacement isolation valve
ALA-DB9-CABLE Replacement VCPlus controller to valve manifold cable
ALA-BOB-8 BNC breakout box for TTL trigger inputs
ALA-VM-STAND Replacement valve manifold stand: magnetic base and 2 rods
ALA-VC38AIRMAN Replacement pressurized air manifold tubing set
ALA-SPILSNSR Replacement Lasso Spill Sensor with connector
ALA-FEP-1 4m clear Teflon tubing with 230um ID and 600um OD (for 100um ID QMM’s)
ALA-FEP-2 4m clear Teflon tubing with 380um ID and 760um OD (for 200um ID QMM’s)
ALA-CF-1/2 Compression fitting for PE-10/20/FEP-1/2 tubing to 1/16″ ID tubing
ALA-TUBING-2 10′ 1/16″ ID and 1/8″ OD PVC tubing
ALA-TUBING-4 2′ silicone pinch valve tubing for pressurized flow

Downloads

VCPlus_manual.pdf

VCPlus_software.zip
