VCPlus – Gravity Perfusion System for Bath / Chamber Perfusion

Add to Wishlist Remove from Wishlist
  • 4 & 8 channel versions
  • Electronics compatible with electrophysiology
  • Low maintenance pinch valves or fast response isolation valves
  • Comes with free control software
  • Comes complete with all tubing
Categories: ,

Details

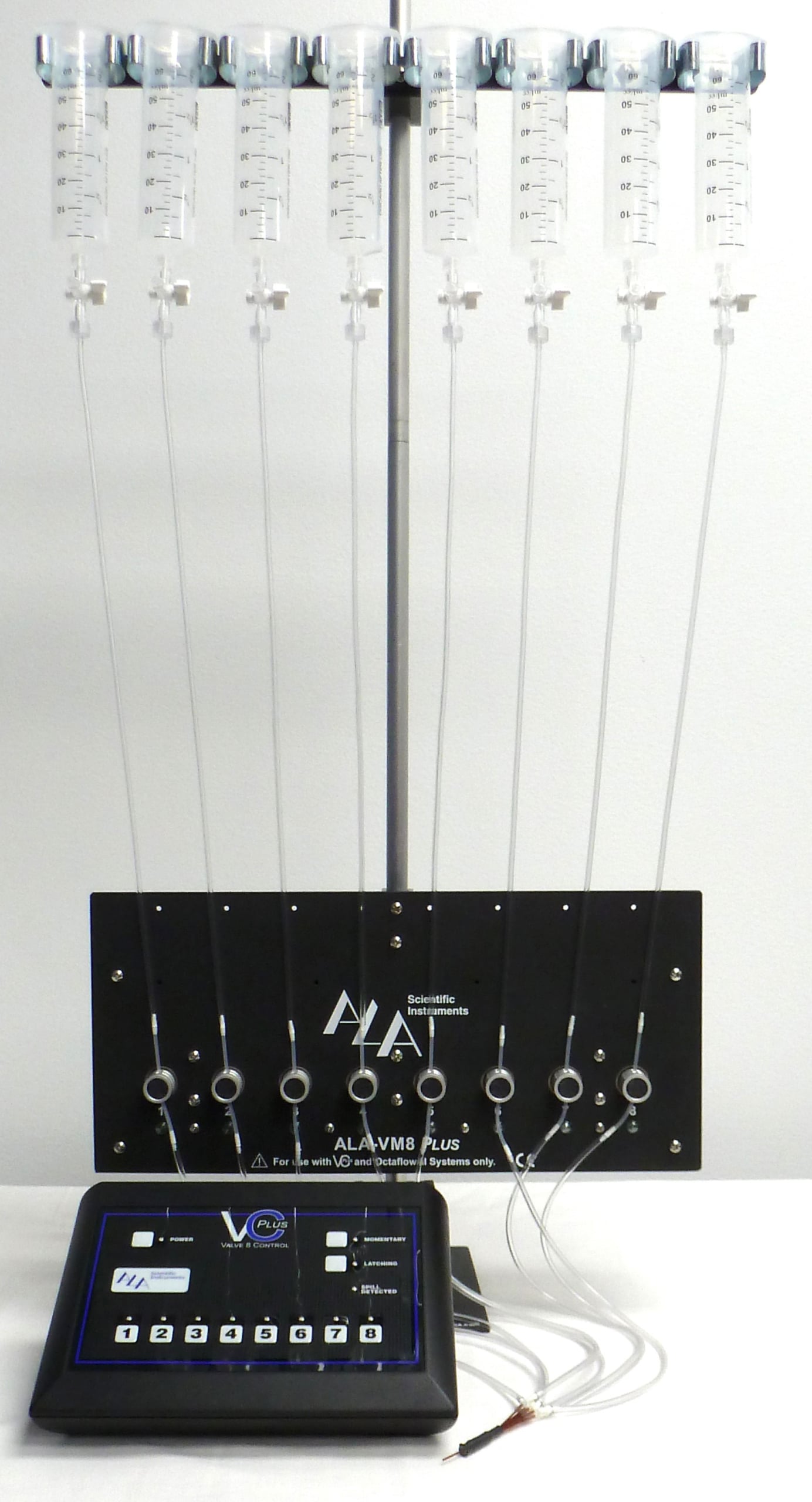

Each VCPlus-8xG Series system includes the following:

  • Magnetic stand with 2 x 18” poles
  • Valve manifold with isolation or pinch valves
  • Reservoir bracket with 60 mL syringe reservoirs
  • VCPlus electronic valve controller with a USB-C cable and control software
  • DB9-CABLE controller to valve manifold cable
  • Manual 3-way stop cock Luer valves and tubing
  • MMF-8 MiniManifold™ or MLF-8 MilliManifold™

Additional options include:

  • Spill sensor: used to detect spills around the microscope to prevent damage to expensive optics
  • Flow Control Valve, FCV-1: manual pinch valve with thumb screw to adjust output flow rates from the output of the MMF-8 or MLF-8
  • 5ml or 10ml syringe reservoirs
  • Breakout Box: BOB-8 for TTL trigger inputs

Valves

Each VCPlus-8xG Series system features a choice of valves:

  • Pinch valves : The 3-way normally open and normally closed pinch valves require minimal maintenance in long-term perfusion experiments and have response times of 15 – 20 ms.
  • Isolation valves: These 2-way normally closed isolation valves  are optimized for high-speed solution exchange. These valves are completely isolated when closed and have response times of 2 – 3 ms.

Technical Data

Valve Controller:

  • Dimensions/Weight: 8″/20.32 cm x 6″/15.24 cm x 2.5″/6.35 cm / 1.5 lbs/0.68 kg
  • Power: 15 VDC/3.15 A
  • Computer Control Input: Analog input 0.5 V/valve TTL high 1 bit/valve; USB 2.0
  • Computer Output Monitoring: Analog output 0.5 V/valve; Sync TTL high 20 ms;
  • Manual Control: Membrane switch 1/valve; mom on/off or toggle on/off, latching on/off

Valve Manifolds:

  • Pinch Valves: 12 VDC/0.25 A ea. 3 way Pinch Valve
  • Pinch Valve Opening Speed: 15 – 20 ms
  • Pinch Valve ID Tubing: 0.040″/1 mm
  • Isolation Valves: 12 VDC/0.25 A ea.
  • Isolation Valve Opening Speed: 2 – 3 ms
  • Reservoirs: 60 mL luer lock syringes
Pinch Valve Isolation valve
3 way NO/NC port NC port
Response time 15 – 20 ms 2 – 3 ms
Wetted area silicone tubing PTFE
Voltage 12 V 12 V
Power 4.2 W 1 W



Gravity flow rate specifications assuming 60 mL reservoirs are full without the manual pinch flow valve attached:

Height (cm) with MLF (mL/min) with MMF (mL/min)
90 11 37
80 10 31
70 9 29
60 8 25
50 7 22



Ordering

PART# DESCRIPTION
ALA-VCPlus-8PG 8 Channel Gravity Bath Perfusion System: controller, power supply, magnetic stand with 2 poles, valve manifold with pinch valves, valve bank to controller cable, software, 8 x 60ml reservoirs and bracket, 8 luer valves, VC3- 8TUBE and MMF-8.
MLF-8, spill sensor and flow control valve are optional.
ALA-VCPlus-8CLG 8 Channel Gravity Bath Perfusion System: controller, power supply, magnetic stand with 2 poles, valve manifold with isolation valves, valve bank to controller cable, software, 8 x 60ml reservoirs and bracket, 8 luer valves, VC3- 8TUBE and MMF-8.
MLF-8, spill sensor and flow control valve are optional.
ALA-VCPlus-8C 8 channel VCPlus electronic valve controller including power supply, cables and software
ALA-VC3-PS VCPlus electronic valve controller power supply
ALA-RESBRACK-8 8 Reservoir bracket for 60mL reservoirs with mounting block – other reservoir sizes available
ALA-MLF-8 MilliManifold™ 4 to 1 channel perfusion outlet manifold made of 500um ID polyimide tubing with 1/16″ barb fittings
ALA-MMF-8 MiniManifold™ 4 to 1 channel perfusion outlet manifold made of 1/16″ ID polyimide tubing with 1/16″ barb fittings
ALA-60MLSYRINGE Box of 25 60mL syringes
ALA-3WLV Replacement manual 3-way stop cock luer valve
ALA-PV Replacement pinch valve
ALA-FCV-1 Replacement manual pinch flow valve
ALA-CLP Isolation 2 way valve
ALA-DB9-CABLE Replacement VC3 controller to valve manifold cable
ALA-BOB-8 Trigger breakout box for TTL trigger to BNC
ALA-VM-STAND Replacement valve manifold stand: magnetic base and 2 rods
ALA-SPILSNSR Replacement Lasso Spill Sensor with connector
ALA-TUBING-2 10′ 1/16″ ID and 1/8″ OD PVC tubing
ALA-TUBING-3 2′ Silicone pinch valve tubing
ALA-VC3-8TUBE VC3-8 tubing kit – PVC/silicone tubing and connectors

Downloads

VCPlus_manual.pdf

VCPlus_software.zip
