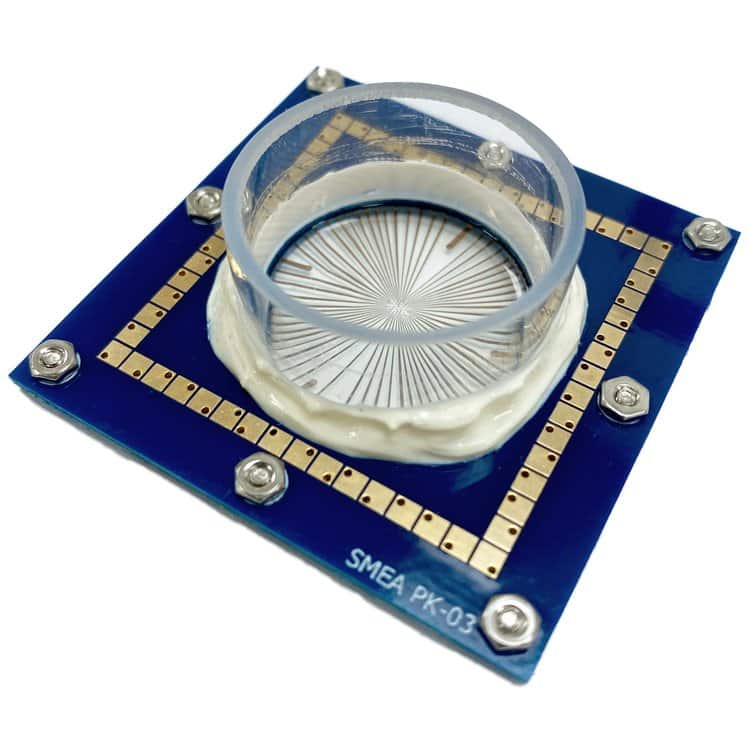

sMEA (stretchable MEA)

Add to Wishlist Remove from Wishlist
  • Flexible, stretchable, and soft
  • Recording and stimulation of electrophysiological activity
  • Mechanically robust: stretch, bend, twist
  • For more details visit BMSEED’s website

How does it work?

How is this possible?

Microcracked gold films offer a combination of desirable properties:

  • low electrical impedance
  • elastically stretchable
  • low elastic modulus
  • low fatigue
  • inexpensive

Why is it important that the gold film is microcracked?

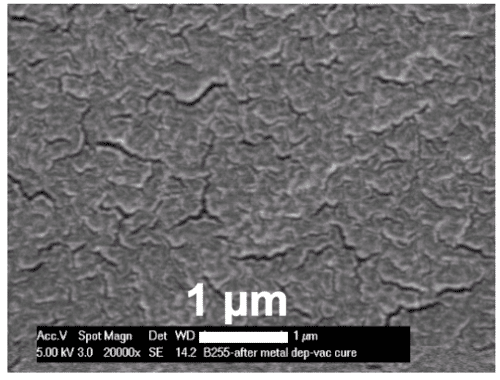

Microcracked gold film on PDMS (sMEAs)

Microcracked gold films can be stretched by over 70% while remaining electrically conductive.

Smooth (no features) gold film on PDMS

Smooth gold films rupture at strains less than 2% and cease to electrically conduct.

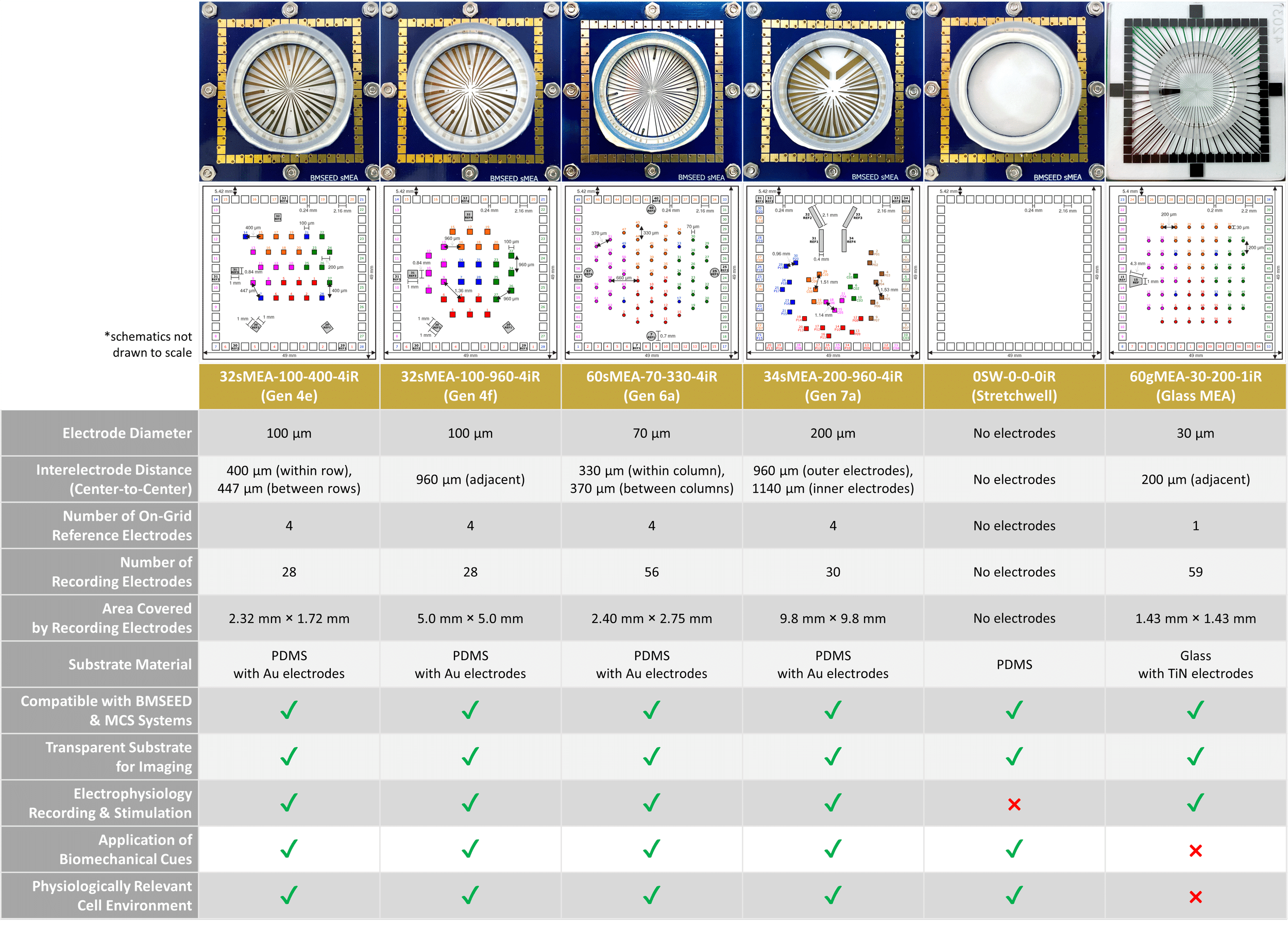

sMEA comparison

ABOUT

Soft and stretchable microelectrode arrays (sMEAs) represent a recent innovation compared to traditional rigid MEAs for recording and stimulating extracellular electrophysiological activity. sMEAs offer a softer and more dynamic mechanical environment for cells, enhancing physiological relevance compared to rigid or simply flexible MEAs. This increased physiological relevance translates into better predictions of cell behavior in vivo. sMEAs function similarly to traditional MEAs for recording and stimulating extracellular electrophysiological activity in tissue slices or dissociated cell cultures. They can be utilized with data acquisition systems from both BMSEED and Multichannel Systems.

How does it work?

How does it work?

How is this possible?

Microcracked gold films offer a combination of desirable properties:

  • low electrical impedance
  • elastically stretchable
  • low elastic modulus
  • low fatigue
  • inexpensive

Why is it important that the gold film is microcracked?

Microcracked gold film on PDMS (sMEAs)

Microcracked gold films can be stretched by over 70% while remaining electrically conductive.

Smooth (no features) gold film on PDMS

Smooth gold films rupture at strains less than 2% and cease to electrically conduct.

sMEA comparison

sMEA comparison
