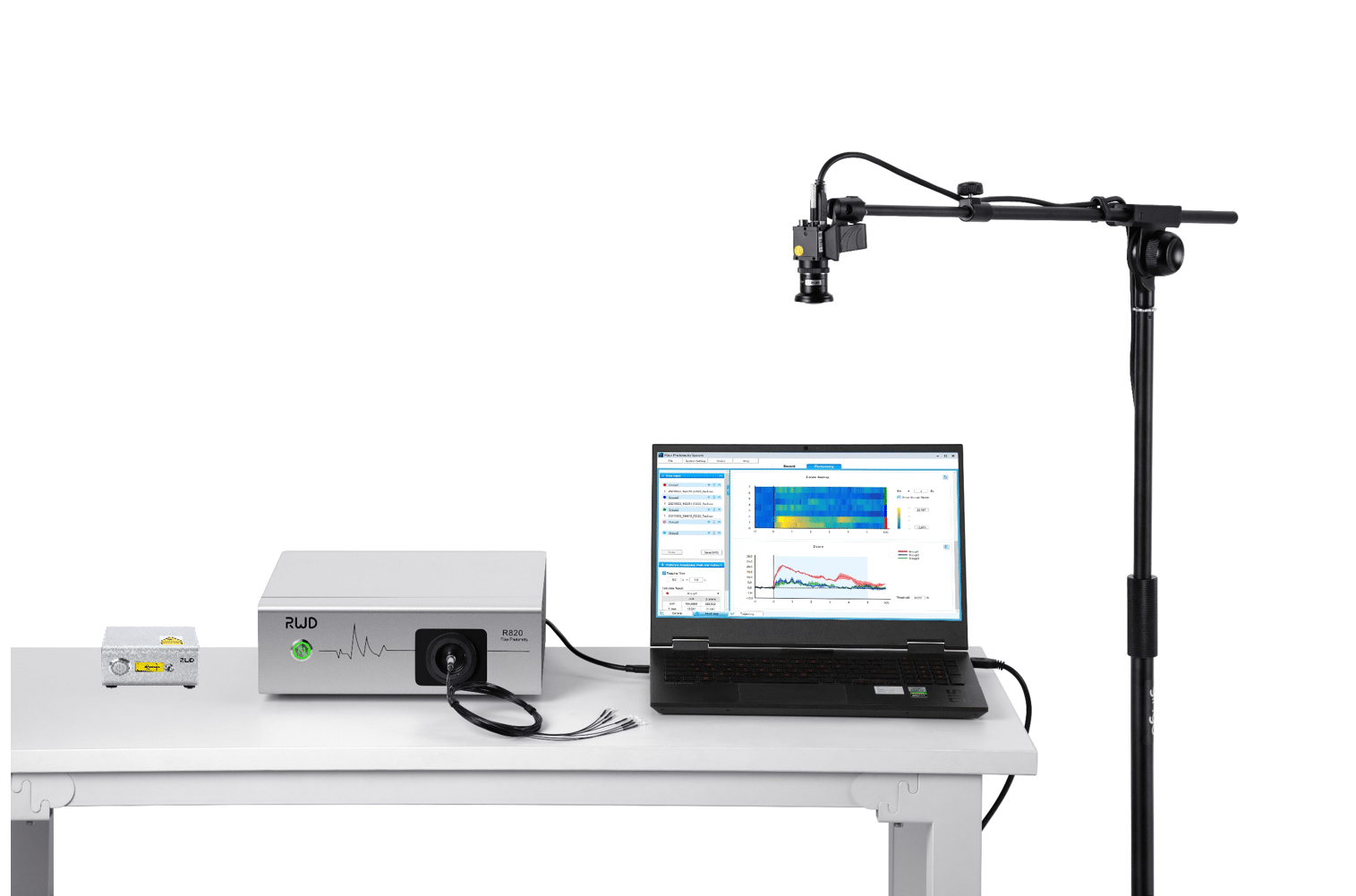

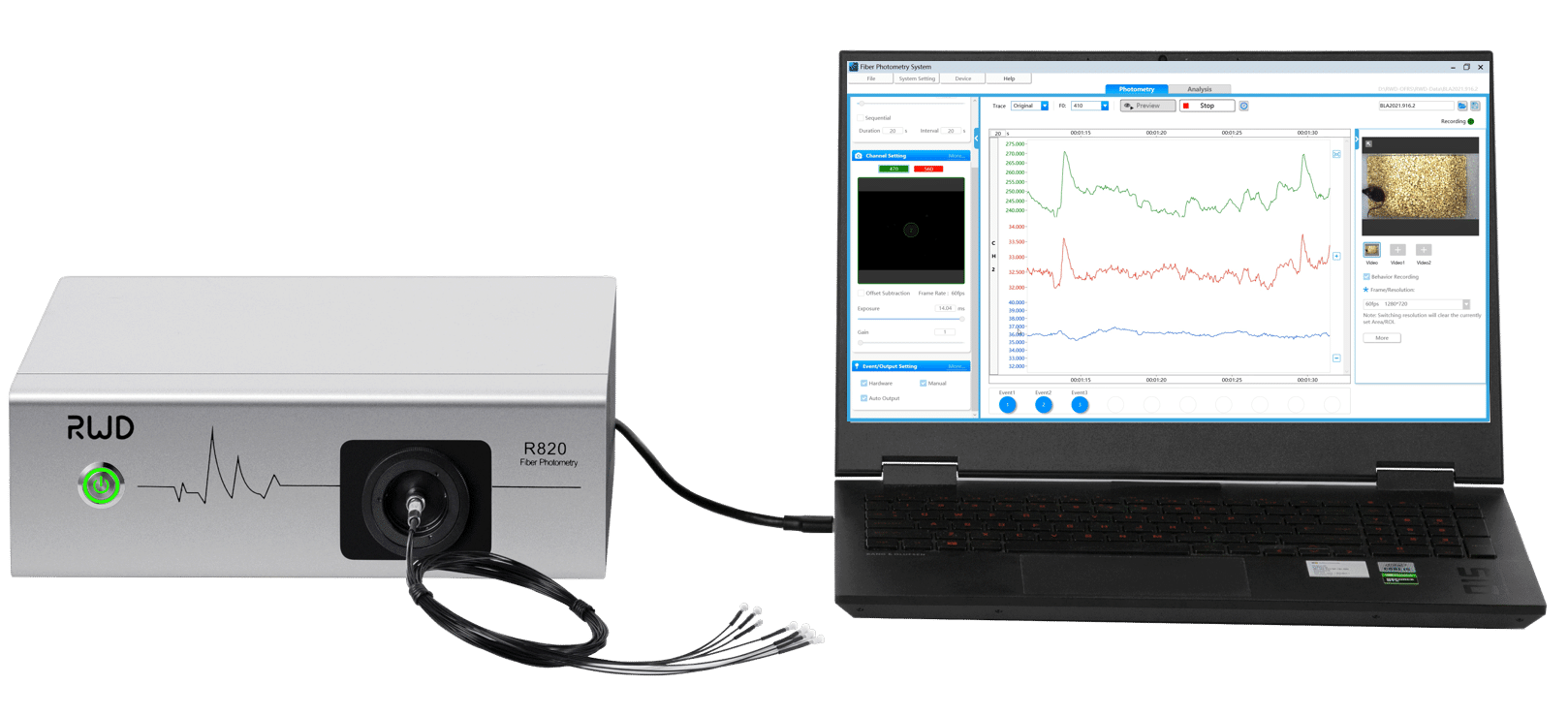

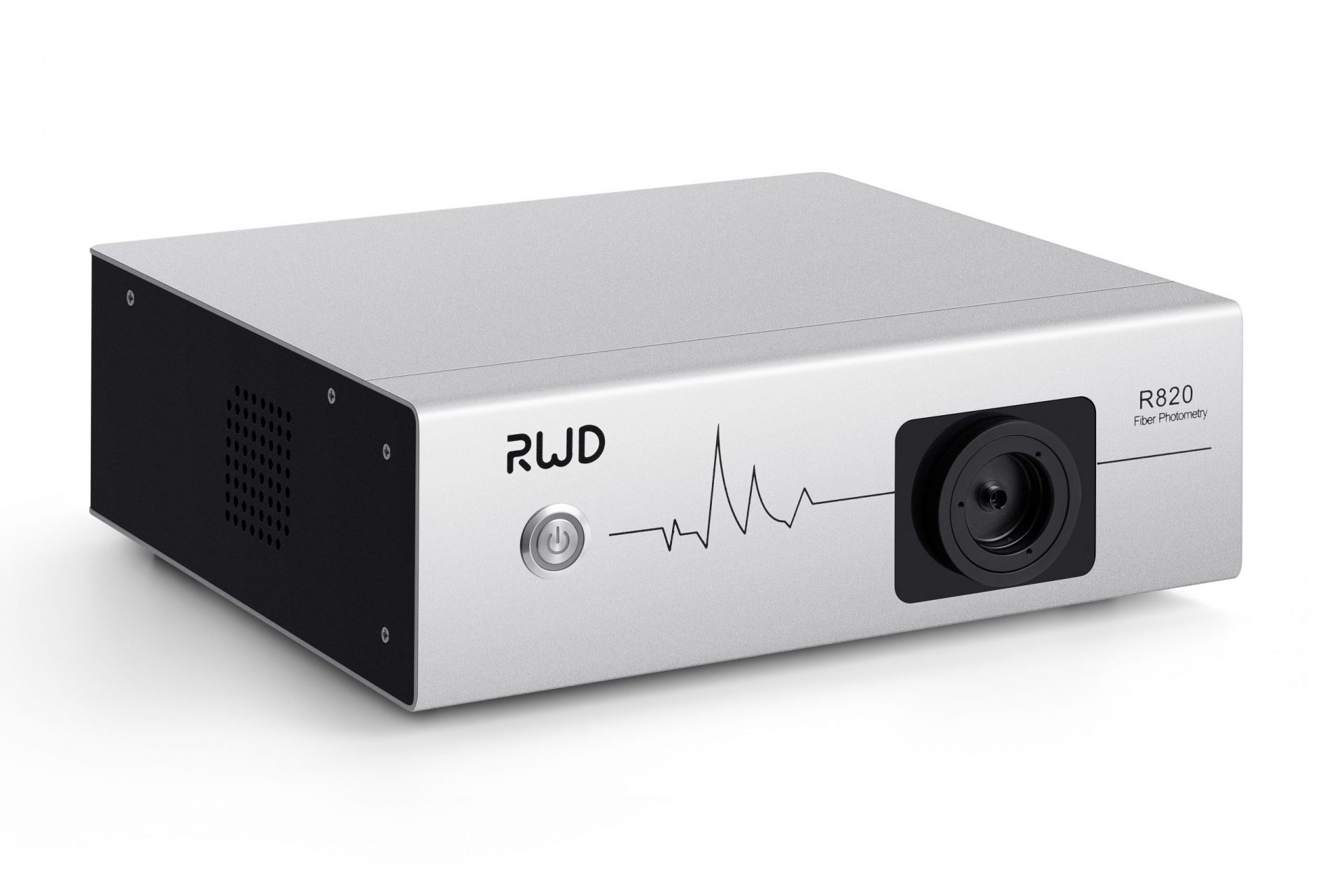

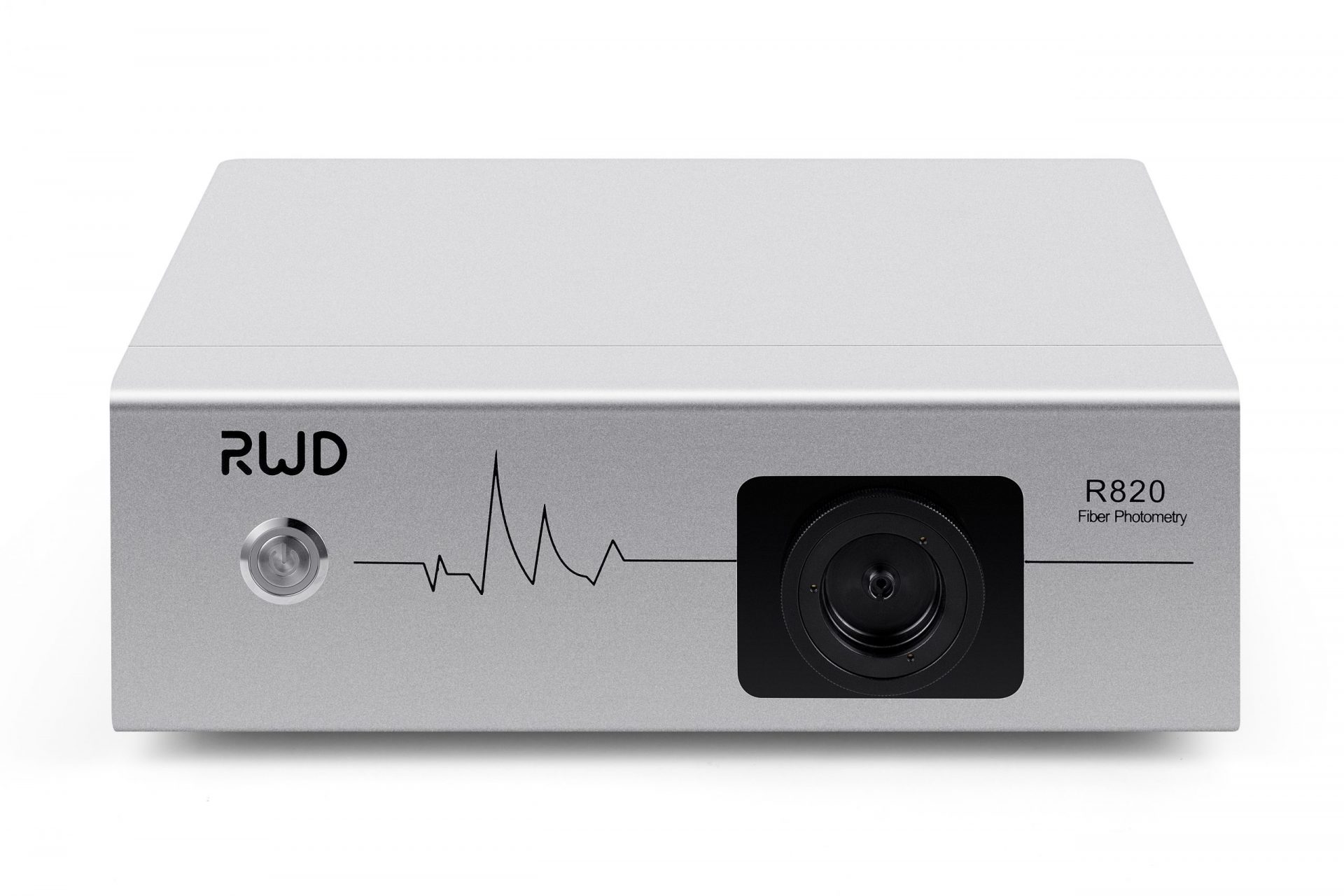

RWD Fiber Photometry System

Add to Wishlist Remove from Wishlist

R-811 DualColor Fiber Photometry System

or

R-821 TriColor Multichannel Fiber Photometry System

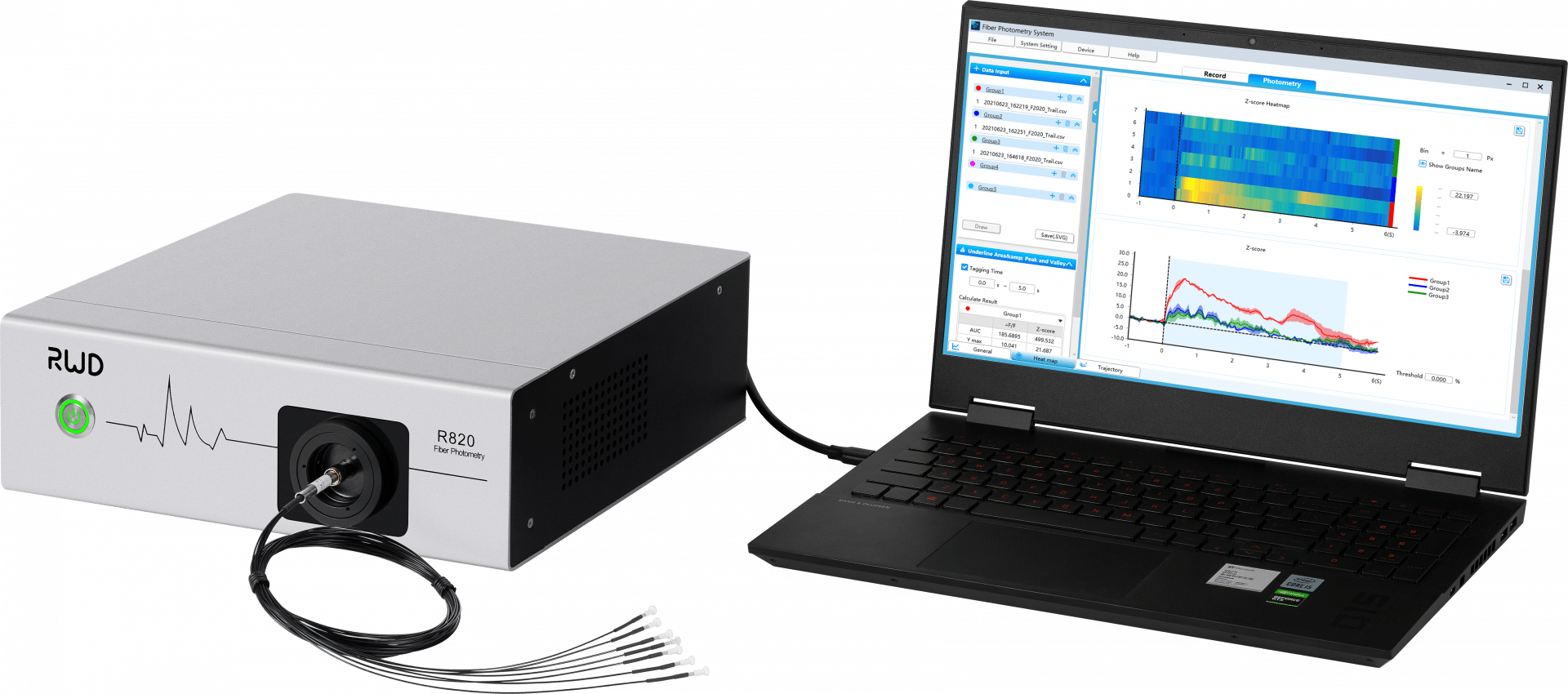

  • Integrates data acquisition, analysis and plotting
  • Synchronize and mark multiple behavioral events
  • Easy connection to other equipment
  • Supports up to 9 channels
Categories: ,

Technical Speifications

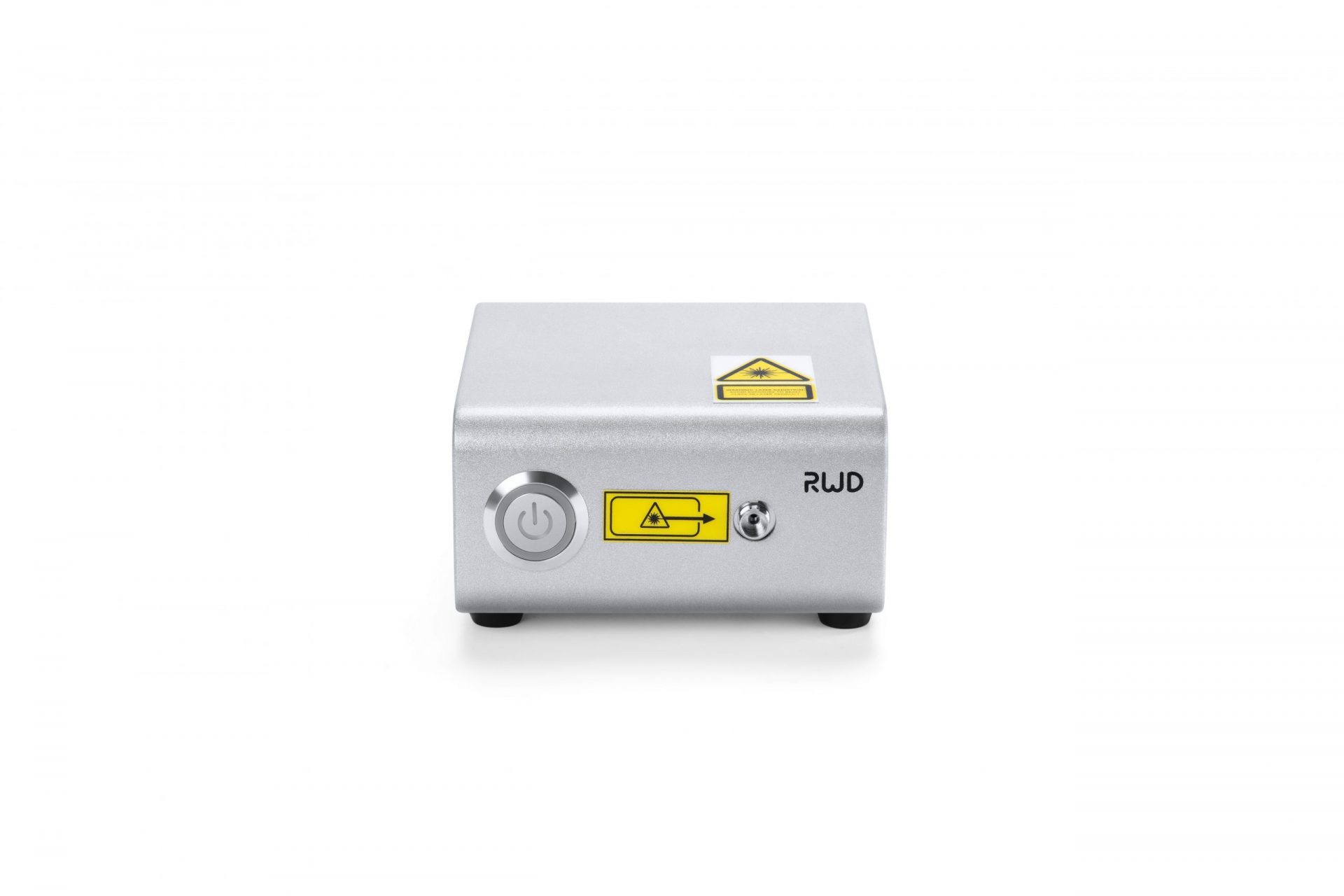

Wavelength of excitation light 410nm 470nm 560nm
Excitation power 0 … 100 µW, adjustable in 0.1 µW
Number of channels 9
Frame rate of fluorescent sampling Max.  300 fps

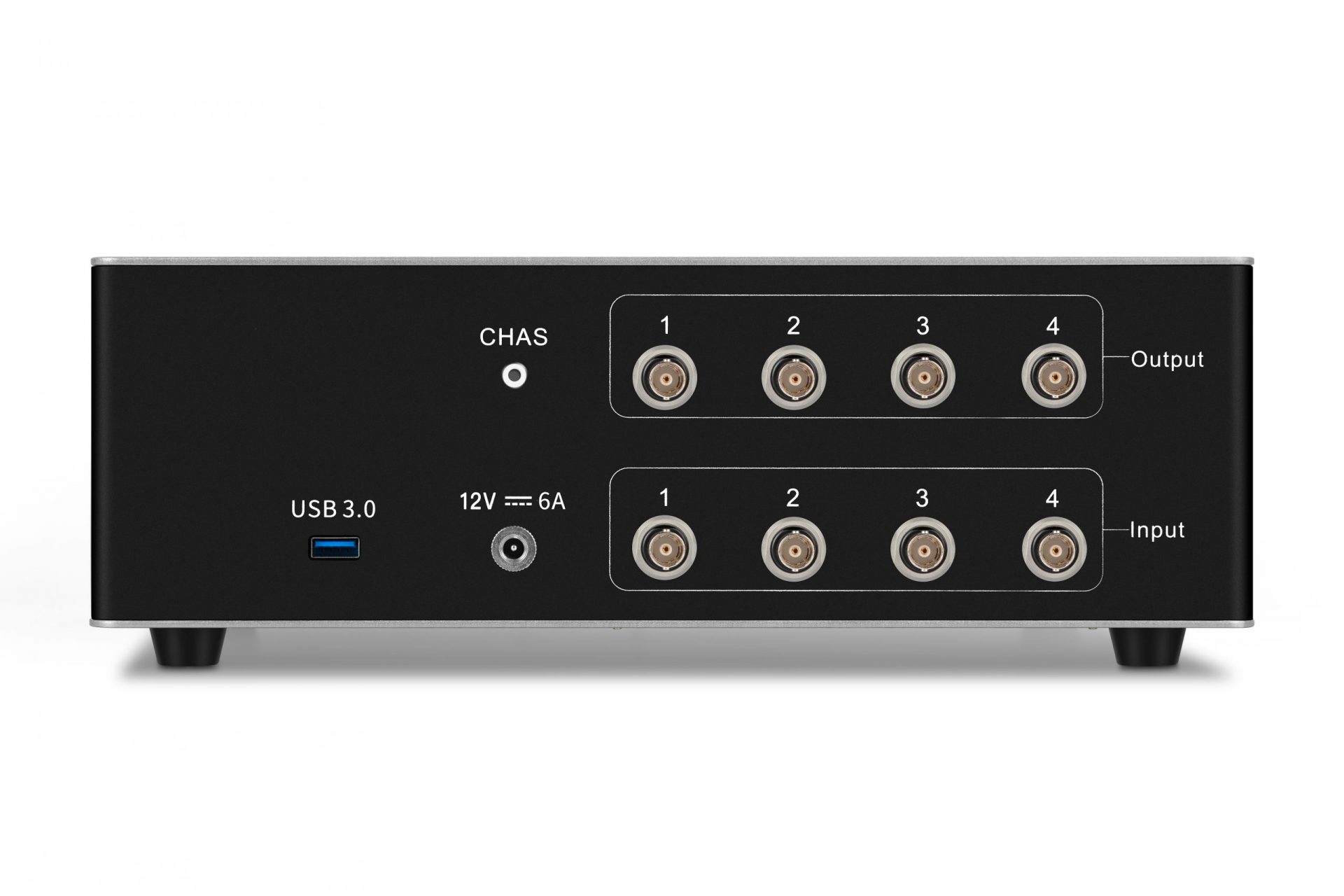

Digital signal interface 4 x Input,  4 x Output
Signal output Output frequency 0-500 Hz,
adjustable output pulse width and duration
Marking Manual marking (10), automatic marking (4), ROI marking (9)
Behavior camera 1920*1080 (30 fps) 1280*720 (60 fps)
Switchable among multiple frame rates of resolution

See also RWD’s website for further information on the R810 and R820 Fiber Photometry system.

This video gives a comprehensive insight into the functions of the system.

Ordering

For pricing and ordering, please contact us.

Sales@npielectronic.com

Please see also the our FiberOptoMeter III – a device without software, but configurable to match specific fluorescent dyes.

ABOUT

Fiber Photometry systems record changes in fluorescence intensity of neurons in a specific brain region. This reflects changes in neural activity. The advantage of fiber based systems is their capability to be used in freely behaving animals. This way it is possible to explore correlations between specific behavioral patterns and neural activity.

Technical Speifications

Technical Speifications

Wavelength of excitation light 410nm 470nm 560nm
Excitation power 0 … 100 µW, adjustable in 0.1 µW
Number of channels 9
Frame rate of fluorescent sampling Max.  300 fps
Digital signal interface 4 x Input,  4 x Output
Signal output Output frequency 0-500 Hz,
adjustable output pulse width and duration
Marking Manual marking (10), automatic marking (4), ROI marking (9)
Behavior camera 1920*1080 (30 fps) 1280*720 (60 fps)
Switchable among multiple frame rates of resolution

See also RWD’s website for further information on the R810 and R820 Fiber Photometry system.

This video gives a comprehensive insight into the functions of the system.

Ordering

Ordering

For pricing and ordering, please contact us.

Sales@npielectronic.com

Please see also the our FiberOptoMeter III – a device without software, but configurable to match specific fluorescent dyes.
