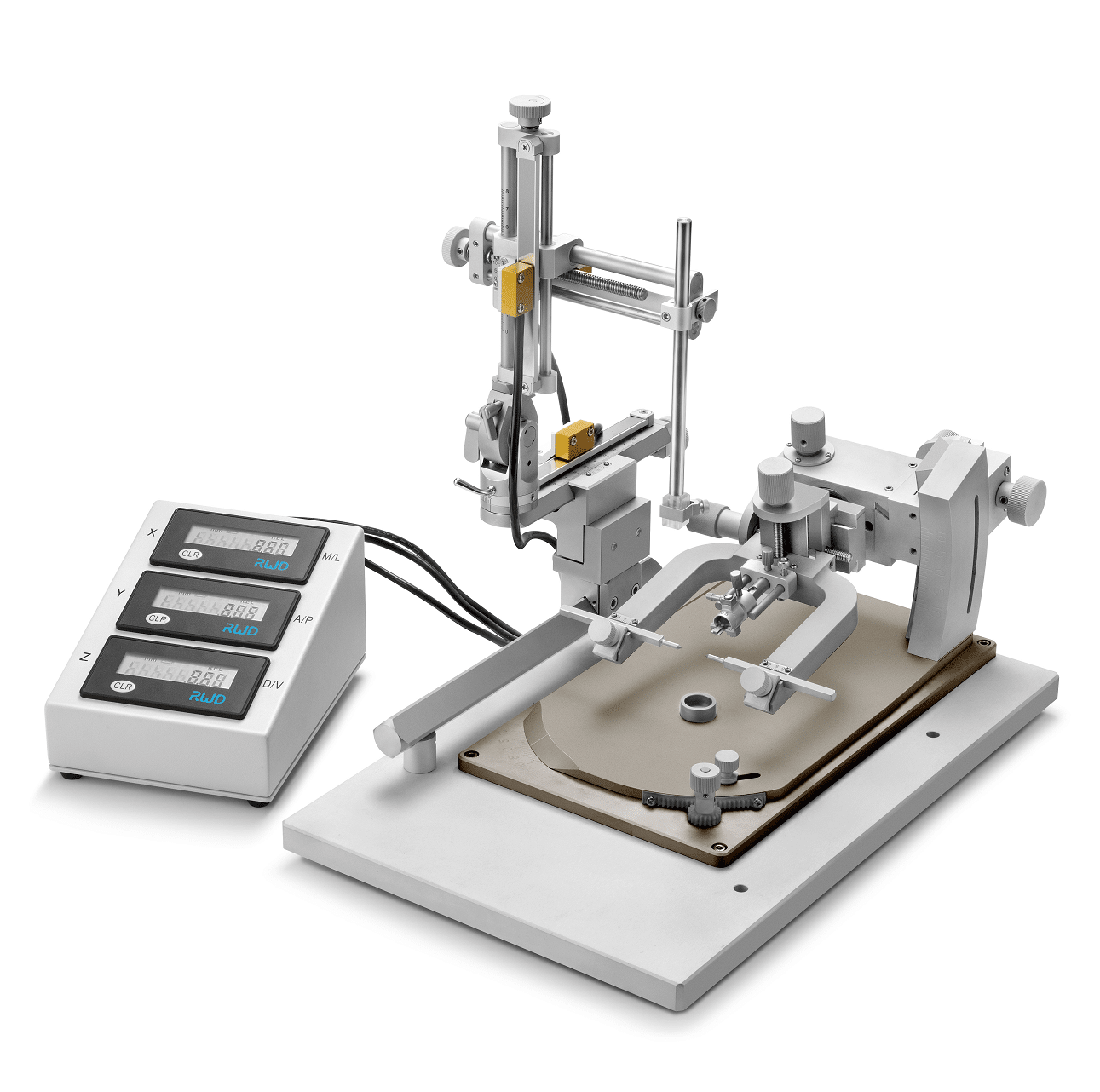

Rotational Digital Stereotaxic Instruments

Add to Wishlist Remove from Wishlist

Rotational Digital Stereotaxic Intstruments

  • 5 axes positioning
  • centering height gauge included
  • compatible with inhalation anesthesia system

Stereotaxic Instruments

1. Fitted with a sagittal positioning plate design,To minimize the levelness, inclination and alignment of the skull

2. The efficiency of cranial horizontal alignment is doubled, and the fixation process in animals is not repeated

3. More detailed five dimensional space positioning can meet the needs of other sites

4. The operation arm has been tested by the motor for 100,000 times, which makes it more durable

5. With 40X magnifier and horizontal calibrator, the skull flattening speed is faster and the brain area positioning accuracy is higher

6. Can be combined with inhalation anesthesia machine, animal mortality is low, the risk of surgery is small



Visit RWDs website for further information.

Tech. Data

Item Description
Tri-axial displacement Range in Sagittal plate (X, Y, Z axis) 30mm
left and right rotation Angle adjustment range in Sagittal plate ±30°
Swing the Angle up and down to adjust the range in Sagittal plate ±10°
horizontal Angle adjustment range in Center floor ±10°
Displacement distance of operating arm (X, Y, Z axis) 80mm
Plate size 400mm X 325mm
The mirror is still served at magnification 40X
Horizontal calibrator reading resolution 0.01mm

Ordering

Model Product Description
69100 Rotational Digital Stereotaxic Instrument for Mouse, Single M.
69101 Rotational Digital Stereotaxic Instrument for Mouse, Dual M.
69102 Rotational Digital Stereotaxic Instrument for Rat, Single M.
69103 Rotational Digital Stereotaxic Instrument for Rat, Dual M.

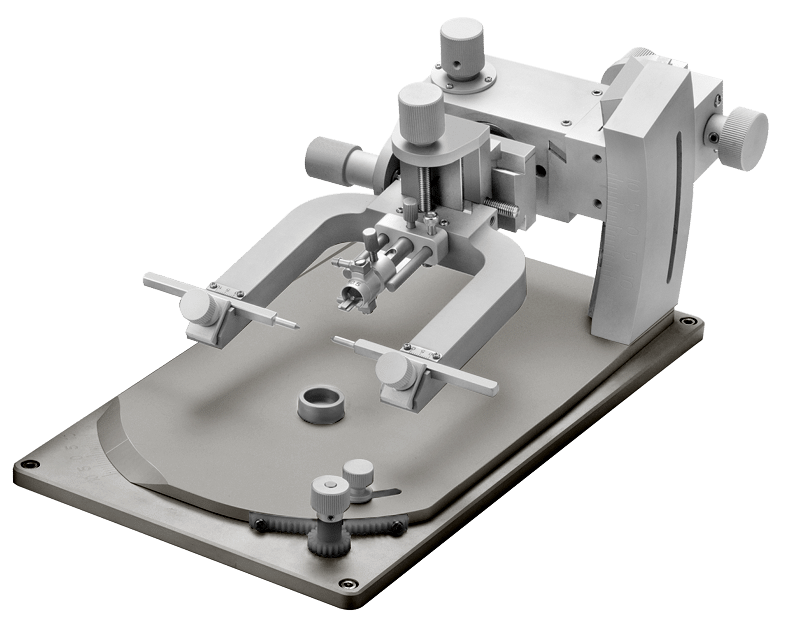

69100S Stereotaxic Frame for Rat or Mouse, Single Rail
69100D Stereotaxic Frame for Rat or Mouse, Dual Rail

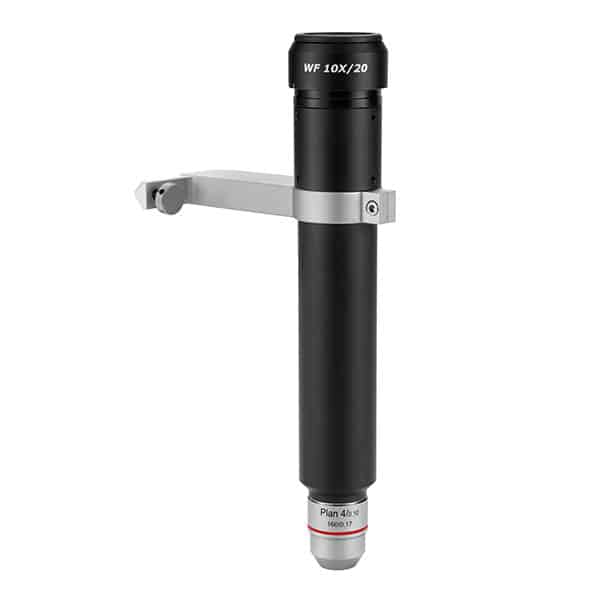

69130 Centering Scope 40X







accessories

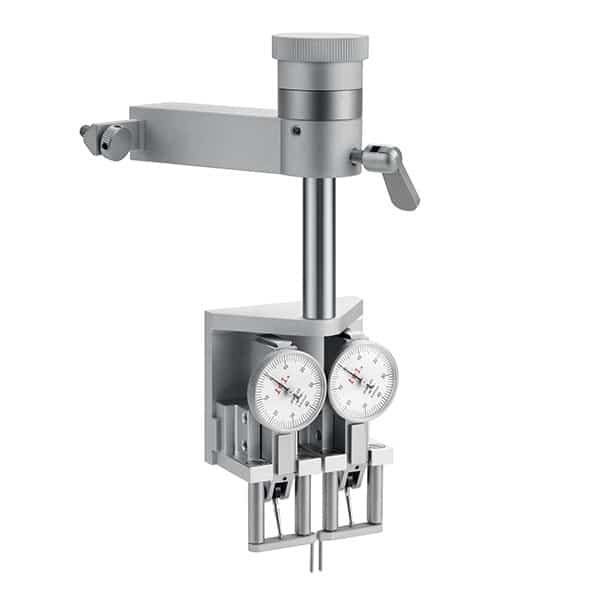

69131 Aligment Indicator
69110 Mouse Anesthesia Adapter with Tubing(<30g)
69111 Mouse Anesthesia Adapter with Tubing(30~70g)
69112 Rat Anesthesia Adapter with Tubing
68113 15°Angle Adaptor
69114 60°Ear Bars for Mouse, One pair
69115 18°Ear Bars for Rat, One pair

For Pricing and additional information please contact us

Sales@npielectronic.com

ABOUT

This stereotaxic frame is a delicate design for mouse and rat experiments that allows easy and flexible rotation of their heads for adjusting the level of the skull. Another benefit of this stereotaxic frame comes from the accuracy of medial lateral rotation: an alignment indicator shows whether the rodent head is horizontal or not. Its 40X Center Magnifier helps find Bregma and Lambda. And you don’t need to set up Bregma repeatedly.

Stereotaxic Instruments

Stereotaxic Instruments

1. Fitted with a sagittal positioning plate design,To minimize the levelness, inclination and alignment of the skull

2. The efficiency of cranial horizontal alignment is doubled, and the fixation process in animals is not repeated

3. More detailed five dimensional space positioning can meet the needs of other sites

4. The operation arm has been tested by the motor for 100,000 times, which makes it more durable

5. With 40X magnifier and horizontal calibrator, the skull flattening speed is faster and the brain area positioning accuracy is higher

6. Can be combined with inhalation anesthesia machine, animal mortality is low, the risk of surgery is small



Visit RWDs website for further information.

Tech. Data

Tech. Data

Item Description
Tri-axial displacement Range in Sagittal plate (X, Y, Z axis) 30mm
left and right rotation Angle adjustment range in Sagittal plate ±30°
Swing the Angle up and down to adjust the range in Sagittal plate ±10°
horizontal Angle adjustment range in Center floor ±10°
Displacement distance of operating arm (X, Y, Z axis) 80mm
Plate size 400mm X 325mm
The mirror is still served at magnification 40X
Horizontal calibrator reading resolution 0.01mm

Ordering

Ordering

Model Product Description
69100 Rotational Digital Stereotaxic Instrument for Mouse, Single M.
69101 Rotational Digital Stereotaxic Instrument for Mouse, Dual M.
69102 Rotational Digital Stereotaxic Instrument for Rat, Single M.
69103 Rotational Digital Stereotaxic Instrument for Rat, Dual M.
69100S Stereotaxic Frame for Rat or Mouse, Single Rail
69100D Stereotaxic Frame for Rat or Mouse, Dual Rail
69130 Centering Scope 40X







accessories

69131 Aligment Indicator
69110 Mouse Anesthesia Adapter with Tubing(<30g)
69111 Mouse Anesthesia Adapter with Tubing(30~70g)
69112 Rat Anesthesia Adapter with Tubing
68113 15°Angle Adaptor
69114 60°Ear Bars for Mouse, One pair
69115 18°Ear Bars for Rat, One pair

For Pricing and additional information please contact us
