PDES – Pressure Application Module

Add to Wishlist Remove from Wishlist

Pneumatic Drug Ejection Module

  • Apply ionic and non-ionic substances in small amounts
  • Locally precise application with the microJECT – a pipette holder with built-in valve
  • Also available as 19″ stand-alone device
Categories: ,

PDES - Pressure Ejection

The PDES Pneumatic Drug Ejectrion System is a device for intracellular microinjection and extracellular dispense of liquids in the picoliter and nanoliter range.
This category of equipment is also known under the generic name “Picospritzer”

PDES modules for the EPMS system are available with digital manometer, digital timer and one channel. They can be operated using an internal or an external valve. Maximum pressure is 4 bar / 58 psi.

PDES systems are also available as 19″ stand-alone devices.

Ordering

Part no. Description

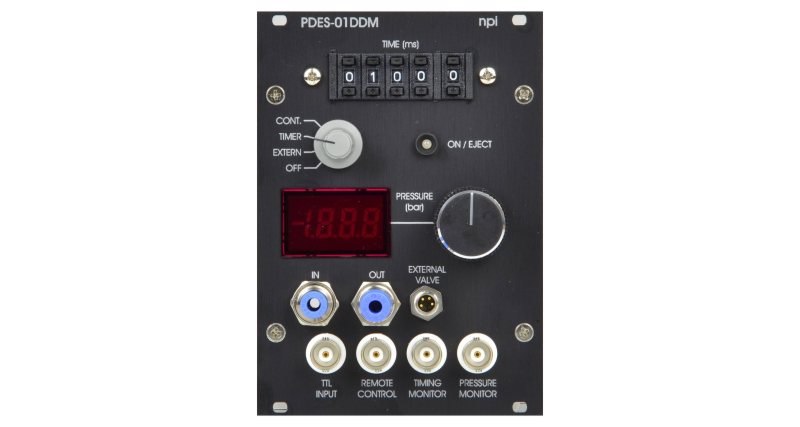

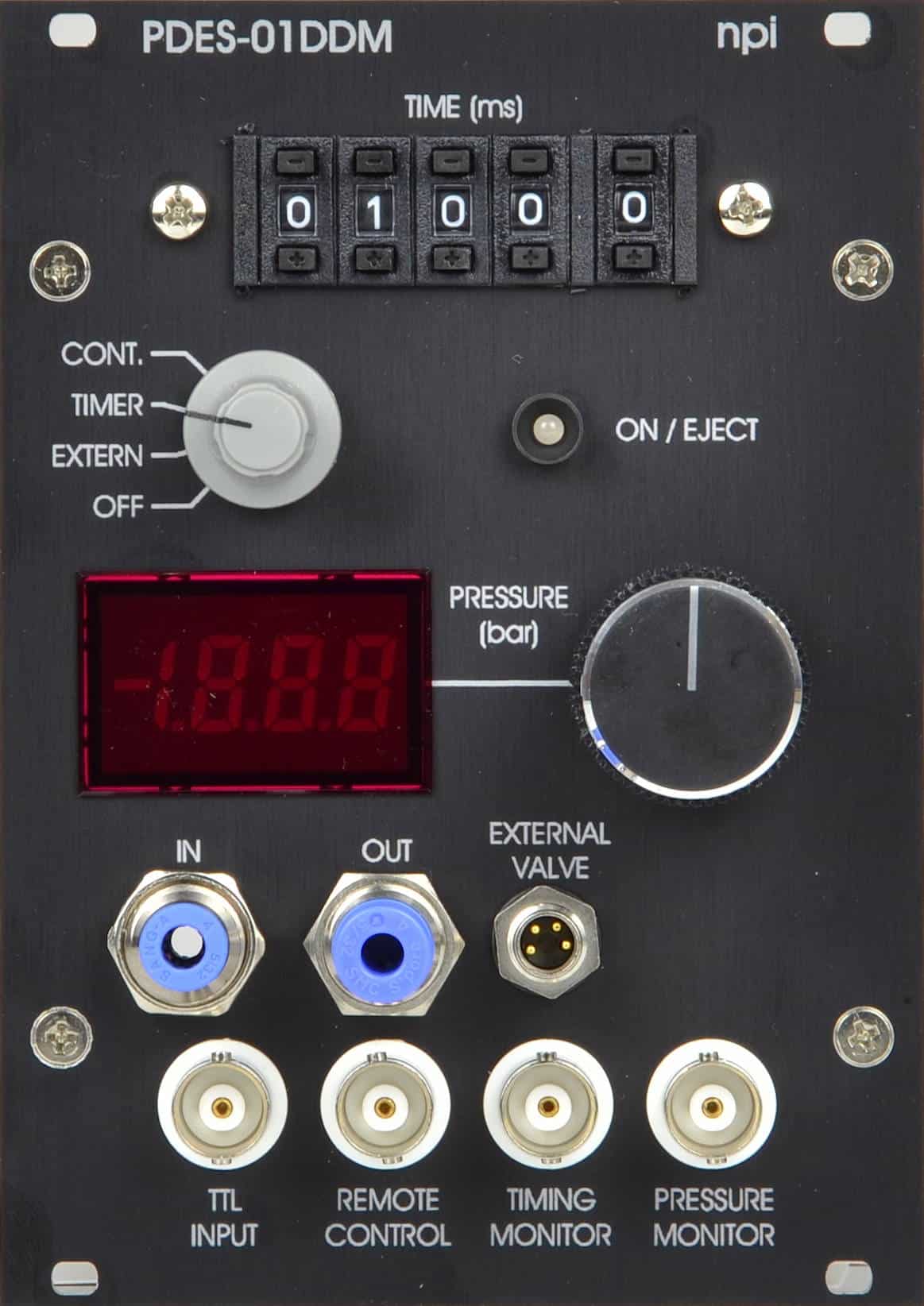

PDES-01D-M-LA internal valve, one channel, digital timer, digital manometer, width = 1.5
PDES-01D-ME-LA external valve, one channel, digital timer, digital manometer, width = 1.5

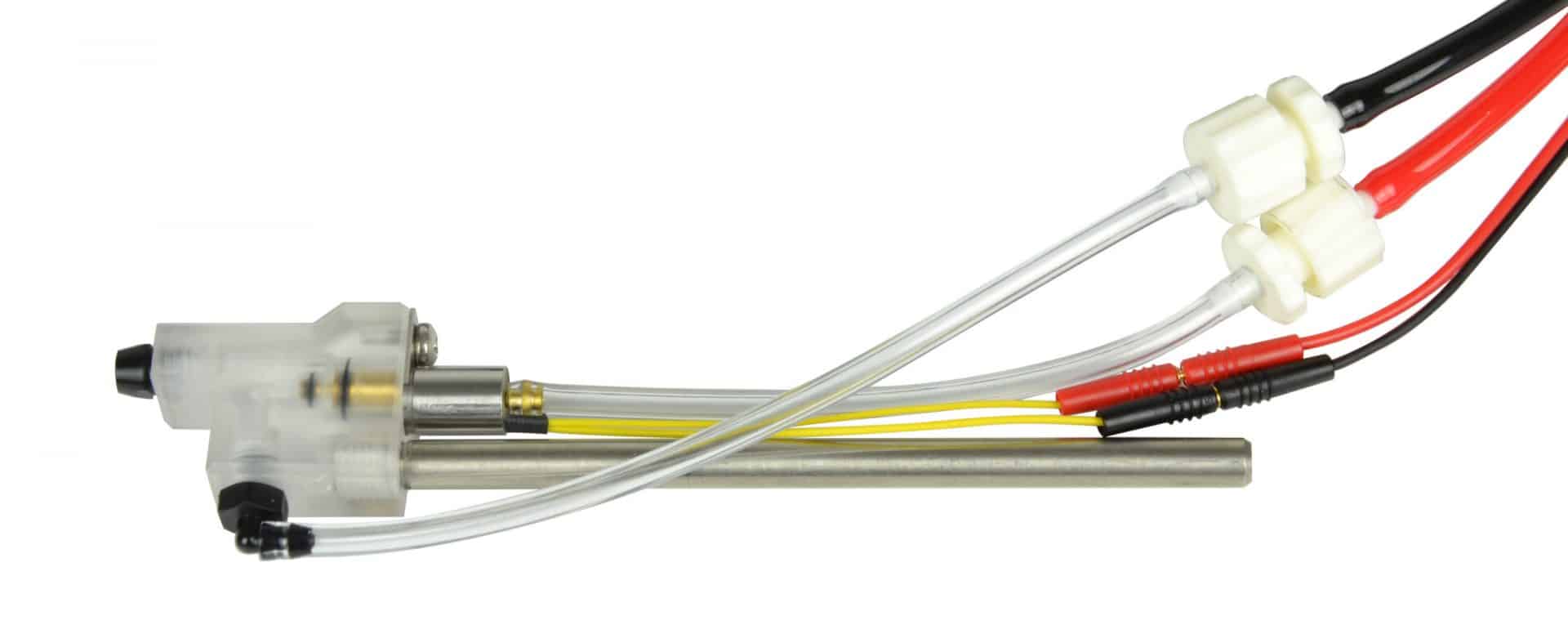

PDES-EHM remote microJECT holder with one fast valve (2 ms and longer)

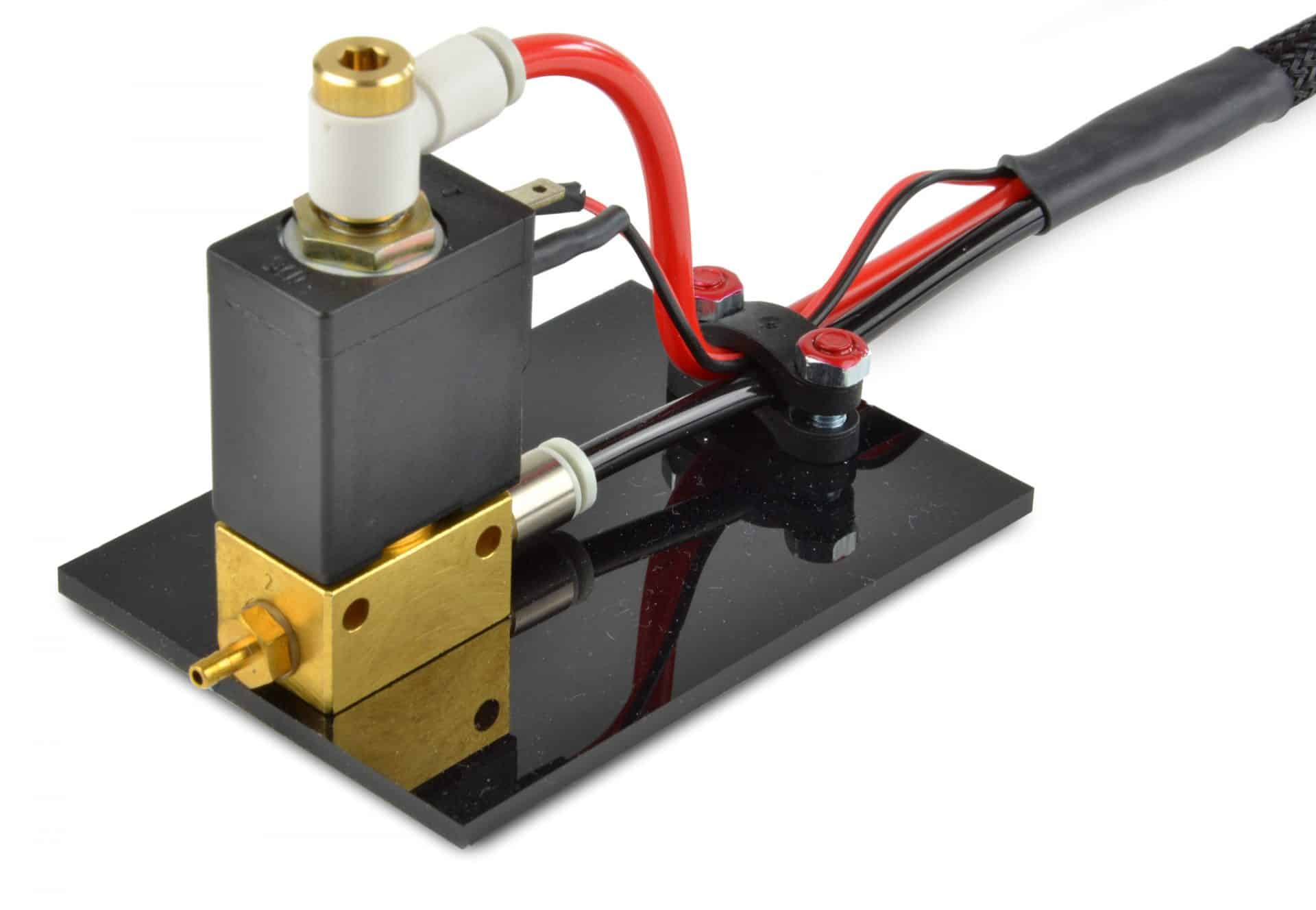

PDES-01-BOX remote valve box for one slow valve (20 ms and longer)
PDES-02-BOX remote valve box for two slow valves (20 ms and longer)
PDES-EH EH-IPH-1-THP Injection pipette holder
PDES-PRS Remote switch push button for PDES modules and DXH systems
PDES-T-4 Tubes for connecting pipettes, outer diameter 4mm; 2 meters length, width 30cm, flexible tubing for connecting the pipette, per channel
PDES-T-6M Pressure tubing for connecting the pressure source to the controller, outer diameter 6 mm, for one channel

Technical Data

Source gas air, nitrogen, helium etc. no aggressive, combustible or explosive gases, filtered by a 5 µm filter element
Pressure range input pressure:
max. 5 bar (1 bar = 105 Pa)
pressure control range:
0-4 bar; display range 0-4 bar or 0-2 bar; display range 0-2.5 bar
Input and output couplings hose fitting connect type for 4 mm (inner diameter) tubing
Status / EJECT time indicator red/green LED
red light:    valve is closed (in EXTERN TIMER, CONT. operation mode)
green light:    valve is open
Off (no light)    valve is closed
Mode selection four position toggle switch, OFF, EXTERN TIMER, CONT.
Valve switching time 10-20 ms (dependent on tubing) / <1 ms with microJECT
Analog timer 0.001 – 0.1 s, 0.01 – 1 s, 0.1 – 10 s or 1 – 100 s with linear control, range set by rotary switch time base selector (x0.01 s, x0.1 s, x1 s, x10 s)
TTL INPUT standard BNC connector, TTL (LO = 0-2.4 V, HI = 2.5-10 V), input impedance 10 kΩ

Downloads

Manual PDES-01DDM manual
Brochures Drug Application

PDES - Pressure Ejection

PDES - Pressure Ejection

The PDES Pneumatic Drug Ejectrion System is a device for intracellular microinjection and extracellular dispense of liquids in the picoliter and nanoliter range.
This category of equipment is also known under the generic name “Picospritzer”

PDES modules for the EPMS system are available with digital manometer, digital timer and one channel. They can be operated using an internal or an external valve. Maximum pressure is 4 bar / 58 psi.

PDES systems are also available as 19″ stand-alone devices.

Ordering

Ordering

Part no. Description
PDES-01D-M-LA internal valve, one channel, digital timer, digital manometer, width = 1.5
PDES-01D-ME-LA external valve, one channel, digital timer, digital manometer, width = 1.5
PDES-EHM remote microJECT holder with one fast valve (2 ms and longer)
PDES-01-BOX remote valve box for one slow valve (20 ms and longer)
PDES-02-BOX remote valve box for two slow valves (20 ms and longer)
PDES-EH EH-IPH-1-THP Injection pipette holder
PDES-PRS Remote switch push button for PDES modules and DXH systems
PDES-T-4 Tubes for connecting pipettes, outer diameter 4mm; 2 meters length, width 30cm, flexible tubing for connecting the pipette, per channel
PDES-T-6M Pressure tubing for connecting the pressure source to the controller, outer diameter 6 mm, for one channel

Technical Data

Technical Data

Source gas air, nitrogen, helium etc. no aggressive, combustible or explosive gases, filtered by a 5 µm filter element
Pressure range input pressure:
max. 5 bar (1 bar = 105 Pa)
pressure control range:
0-4 bar; display range 0-4 bar or 0-2 bar; display range 0-2.5 bar
Input and output couplings hose fitting connect type for 4 mm (inner diameter) tubing
Status / EJECT time indicator red/green LED
red light:    valve is closed (in EXTERN TIMER, CONT. operation mode)
green light:    valve is open
Off (no light)    valve is closed
Mode selection four position toggle switch, OFF, EXTERN TIMER, CONT.
Valve switching time 10-20 ms (dependent on tubing) / <1 ms with microJECT
Analog timer 0.001 – 0.1 s, 0.01 – 1 s, 0.1 – 10 s or 1 – 100 s with linear control, range set by rotary switch time base selector (x0.01 s, x0.1 s, x1 s, x10 s)
TTL INPUT standard BNC connector, TTL (LO = 0-2.4 V, HI = 2.5-10 V), input impedance 10 kΩ

Downloads

Downloads

Manual PDES-01DDM manual
Brochures Drug Application
