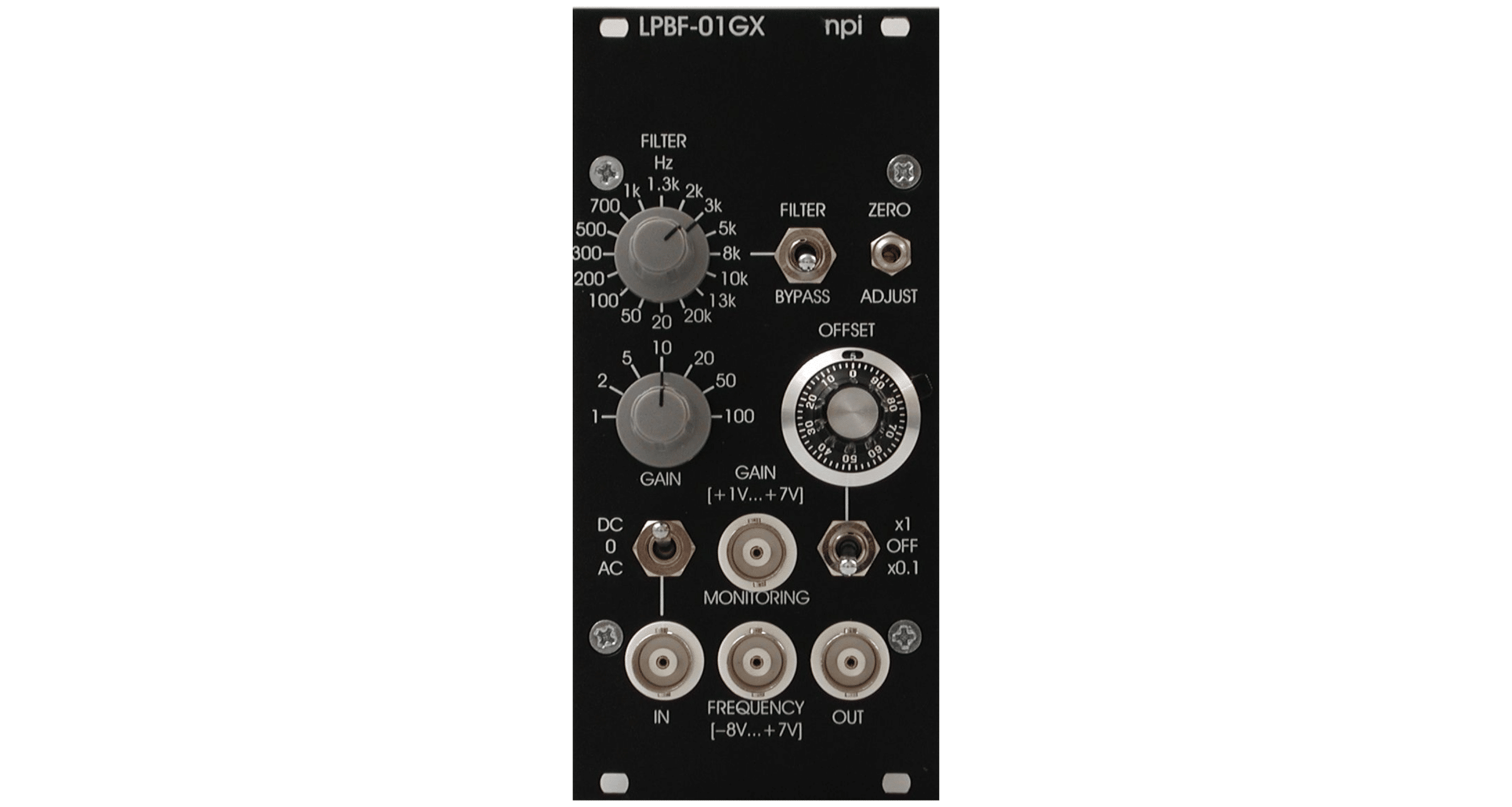

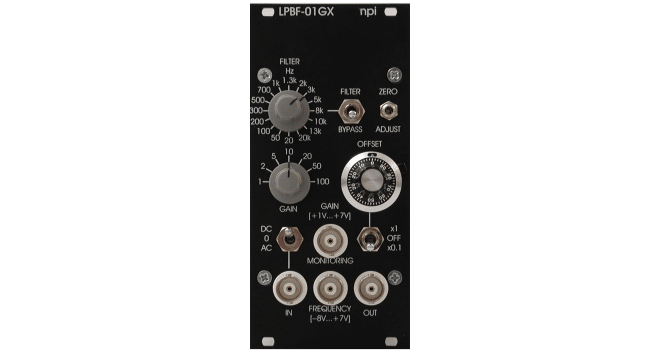

LPBF-01GX – Low pass Bessel filter with gain
- 8 pole low pass filter with 16 corner frequencies
- gain from 1 to 100
- AC or DC input
Technical Data
| Input range: |
±12 V |
| Input impedance: |
1 MΩ, related to ground |
| Input capacitance: |
30 pF |
| AC coupling at input: |
corner frequency of 0.1 Hz (if AC / 0 / DC switch at BNC connector is switched to AC) |
| OFFSET compensation: |
set by ten-turn potentiometer, range ±0.1, ±1 V or OFF, selected by toggle switch, OFF position separately adjustable with trim pot |
| LOWPASS Filter: |
eight pole Bessel filter, attenuation: -48 dB/octave, corner frequencies (Hz): 20, 50, 100, 200, 300, 500, 700, 1k, 1,3k, 2k, 3k, 5k, 8k, 10k, 13k, 20k, bypass switch |
| frequency monitor: |
-8 V to +7 V, 1 V / switch step |
| GAIN: rotary-switch: |
1-2-5-10-20-50-100 |
| gain monitor: |
+1 V to +7 V, 1 V / switch step |
| Output: range: |
±12 V into 1 kW / ±1 V into 50 W |
| Dimensions: |
front panel: 12 HP (60.6 mm) wide x 3U (128,5 mm) high, |
| corresponds |
1 Unit |
| housing: |
7” (175 mm) deep |
Ordering
| Part no. |
Description |
| LPBF-01GX-08 |
Filter module with gain, 8-pole low pass Bessel filter with 16 corner frequencies, width = 1 |
