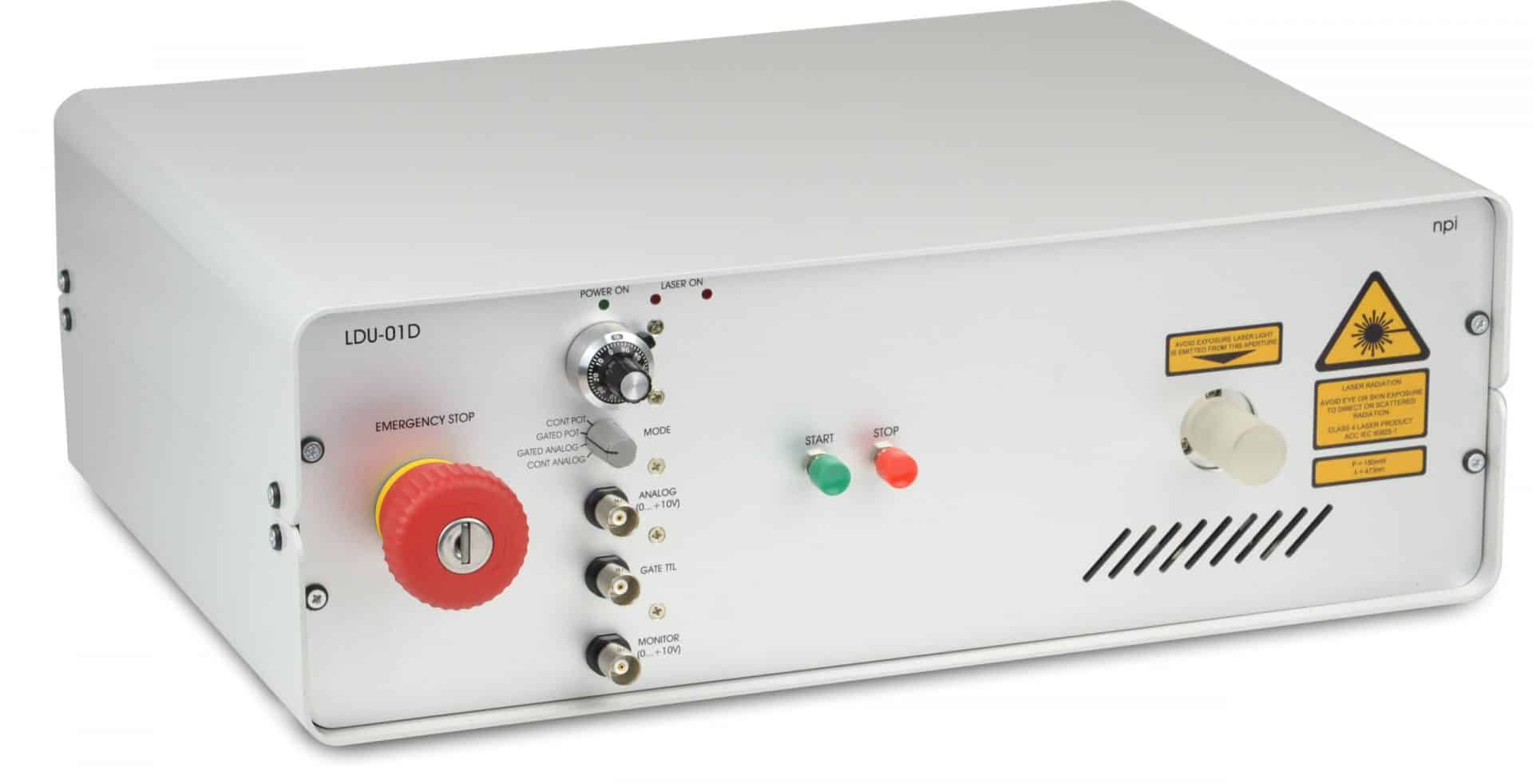

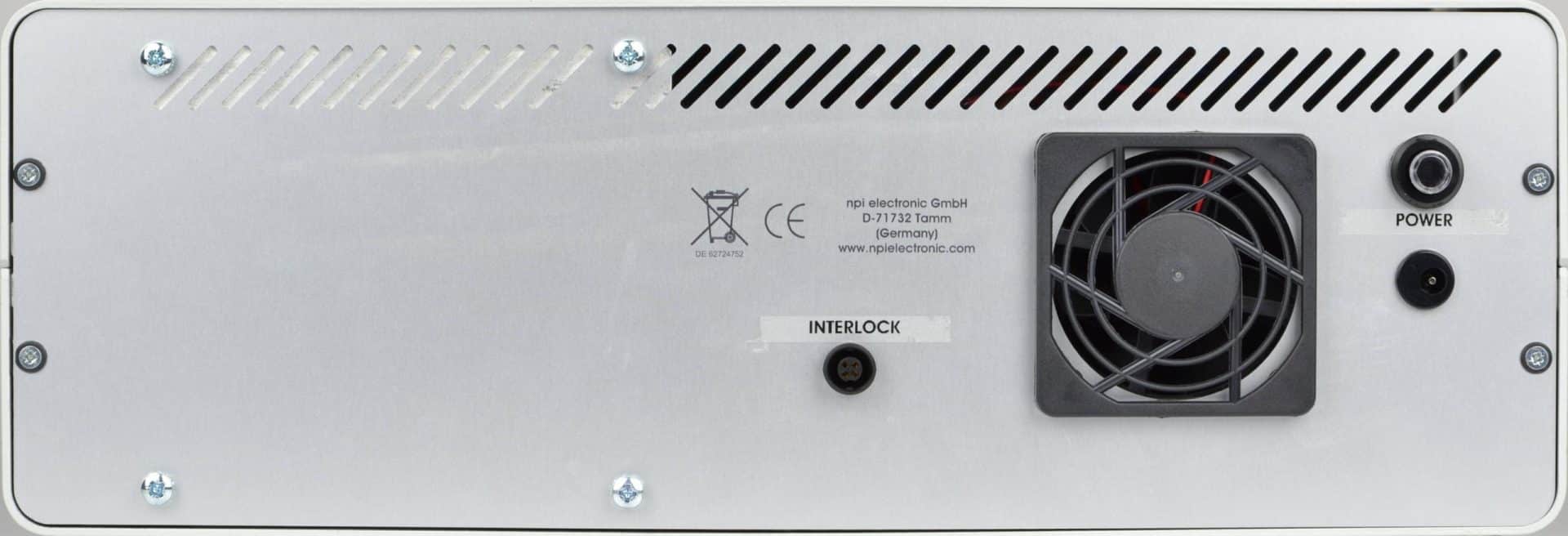

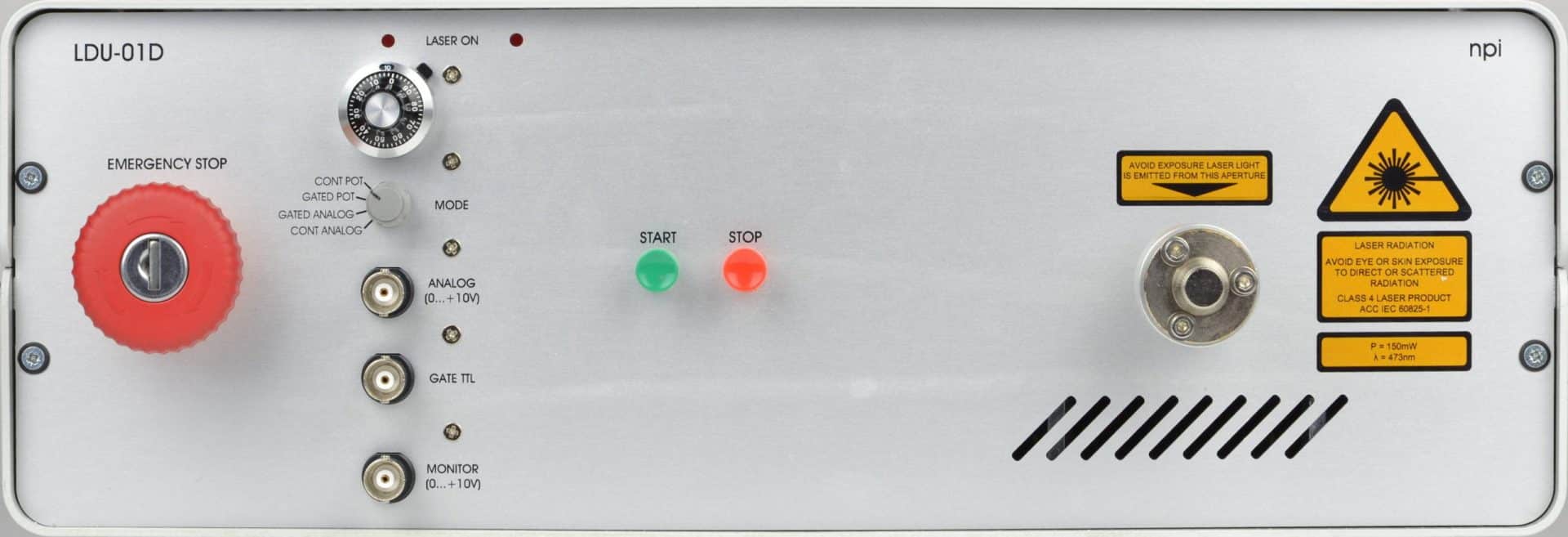

LDU-01D – Laser Driver Unit

Add to Wishlist Remove from Wishlist

LDU-01D – Laser Driver Unit

  • Fiber based optogenetics with powerful laser source
  • Easy integration into your system due to versatile control options
  • Connect standard fibers – LDU available with SMA and FC/PC port
Category:

Technical Data

As an example for the 473 nm version:

Wavelength 473 nm
Laser output power 200 mW
Analog input 0…10 V, BNC connector
TTL input 0…5 V, BNC connector
Monitor output 0…10 V, BNC connector
Dimensions (W x D x H) 365 mm x 260 mm x 130 mm
Input power 12 V, 10 A

Ordering

The LDU-01D is available with different laser modules. Each LDU-01D can house one laser module. A complete system consists of the LDU-01D + LDU-L-XXX (with XXX as wavelength in nm).

Part number Description
LDU-01D Laser Driver Unit: Desktop housing for solid state laser; Control via TTL, analog input or manually (10-turn potentiometer); Solid state laser needs to be ordered separately
LDU-L-360 Solid state laser module for LDU-01D; Wavelenght: 360 nm; Power output at fiber end > 70 mW
LDU-L-473 Solid state laser module for LDU-01D; Wavelenght: 473 nm; Power output at fiber end > 100 mW
LDU-L-589 Solid state laser module for LDU-01D; Wavelenght: 589 nm; Power output at fiber end > 100 mW

Downloads

Brochure LDU-01D
Manual LDU-01D manual

ABOUT

The LDU-01D is a fiber based light source for optogenetics. A solid state laser in combination with npi’s electronics allow control with TTL pulses, where the intensity is set by a potentiometer. Alternatively, an analog input signal can be used to modulate the Laser’s power.

Technical Data

Technical Data

As an example for the 473 nm version:

Wavelength 473 nm
Laser output power 200 mW
Analog input 0…10 V, BNC connector
TTL input 0…5 V, BNC connector
Monitor output 0…10 V, BNC connector
Dimensions (W x D x H) 365 mm x 260 mm x 130 mm
Input power 12 V, 10 A

Ordering

Ordering

The LDU-01D is available with different laser modules. Each LDU-01D can house one laser module. A complete system consists of the LDU-01D + LDU-L-XXX (with XXX as wavelength in nm).

Part number Description
LDU-01D Laser Driver Unit: Desktop housing for solid state laser; Control via TTL, analog input or manually (10-turn potentiometer); Solid state laser needs to be ordered separately
LDU-L-360 Solid state laser module for LDU-01D; Wavelenght: 360 nm; Power output at fiber end > 70 mW
LDU-L-473 Solid state laser module for LDU-01D; Wavelenght: 473 nm; Power output at fiber end > 100 mW
LDU-L-589 Solid state laser module for LDU-01D; Wavelenght: 589 nm; Power output at fiber end > 100 mW

Downloads

Downloads

Brochure LDU-01D
Manual LDU-01D manual
