Fiber Optic Cannulas

Add to Wishlist Remove from Wishlist
  • Ceramic ferrule with 1.25 mm or 2.5 mm diameter
  • Black or white color
  • NA 0.22, NA 0.39 or NA 0.50
  • 100 µm, 200 µm, 300 µm or 400 µm fibers
  • Cusomizable length: 2 mm to 20 mm in 0.5 mm steps
Categories: , ,

Ordering

Part No. Description (Length options: 2 mm – 20 mm, in 0.5 mm steps)
R-FOC-L200C-39NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.39NA, 20/pkg
R-FOC-L300C-39NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 300um Core, 0.39NA, 20/pkg
R-FOC-L400C-39NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.39NA, 20/pkg
R-FOC-F200C-39NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.39NA, 20/pkg
R-FOC-F300C-39NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 300um Core, 0.39NA, 20/pkg
R-FOC-F400C-39NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.39NA, 20/pkg
R-FOC-L200C-22NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.22NA, 20/pkg
R-FOC-L300C-22NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 300um Core, 0.22NA, 20/pkg
R-FOC-L400C-22NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.22NA, 20/pkg
R-FOC-F200C-22NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.22NA, 20/pkg
R-FOC-F300C-22NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 300um Core, 0.22NA, 20/pkg
R-FOC-F400C-22NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.22NA, 20/pkg
R-FOC-L200C-50NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.50NA, 20/pkg
R-FOC-F200C-50NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.50NA, 20/pkg
R-FOC-L400C-50NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.50NA, 20/pkg
R-FOC-F400C-50NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.50NA, 20/pkg
R-FOC-BL200C-39NA Fiber Optic Cannulae（Black） with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.39NA, 20/pkg
R-FOC-BL300C-39NA Fiber Optic Cannulae（Black） with Ø1.25 mm Ceramic Ferrule, 300um Core, 0.39NA, 20/pkg
R-FOC-BL400C-39NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.39NA, 20/pkg
R-FOC-BF200C-39NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.39NA, 20/pkg
R-FOC-BF300C-39NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 300um Core, 0.39NA, 20/pkg
R-FOC-BF400C-39NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.39NA, 20/pkg
R-FOC-BL100C-22NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 100um Core, 0.22NA, 20/pkg
R-FOC-BL200C-22NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.22NA, 20/pkg
R-FOC-BL300C-22NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 300um Core, 0.22NA, 20/pkg
R-FOC-BL400C-22NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.22NA, 20/pkg
R-FOC-BF100C-22NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 100um Core, 0.22NA, 20/pkg
R-FOC-BF200C-22NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.22NA, 20/pkg
R-FOC-BF300C-22NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 300um Core, 0.22NA, 20/pkg
R-FOC-BF400C-22NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.22NA, 20/pkg
R-FOC-BL200C-50NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.50NA, 20/pkg
R-FOC-BF200C-50NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.50NA, 20/pkg
R-FOC-BL400C-50NA Fiber Optic Cannulae（Black） with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.50NA, 20/pkg
R-FOC-BF400C-50NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.50NA, 20/pkg

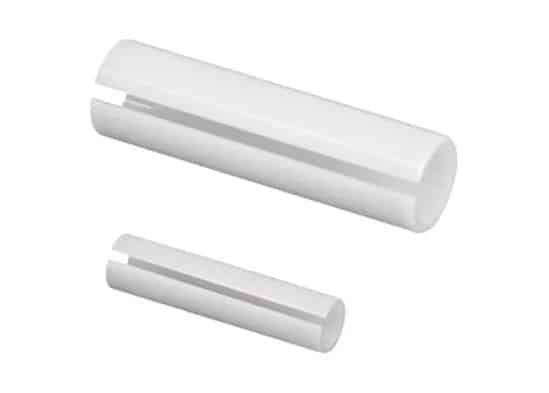

R-MS-1.25 Ceramic Sleeves, Φ1.25mm, pkg of 20pcs
R-MS-2.5 Ceramic Sleeves, Φ2.5mm, pkg of 20pcs

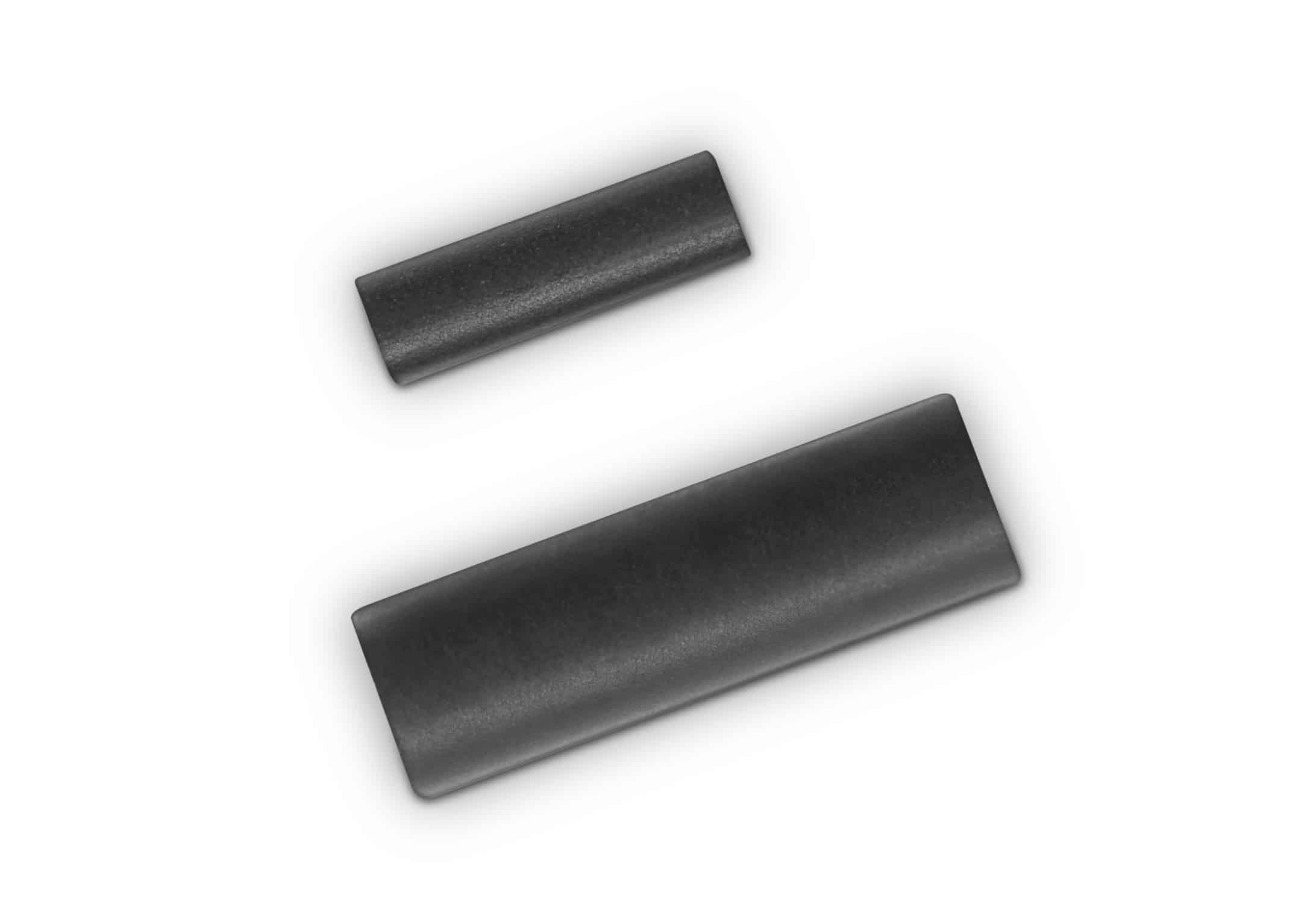

R-BMS-1.25 Black Ceramic Sleeves, Φ1.25mm, pkg of 20pcs
R-BMS-2.5 Black Ceramic Sleeves, Φ2.5mm, pkg of 20pcs

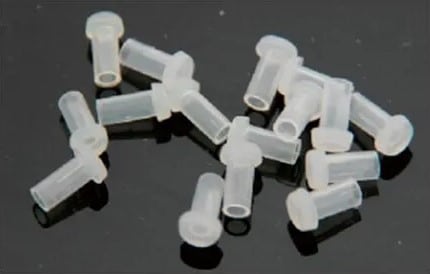

R-DC-1.25 Ceramic Ferrules Protective Cap, Φ1.25mm, pkg of 200pcs
R-DC-2.5 Ceramic Ferrules Protective Cap, Φ2.5mm, pkg of 200pcs

ABOUT

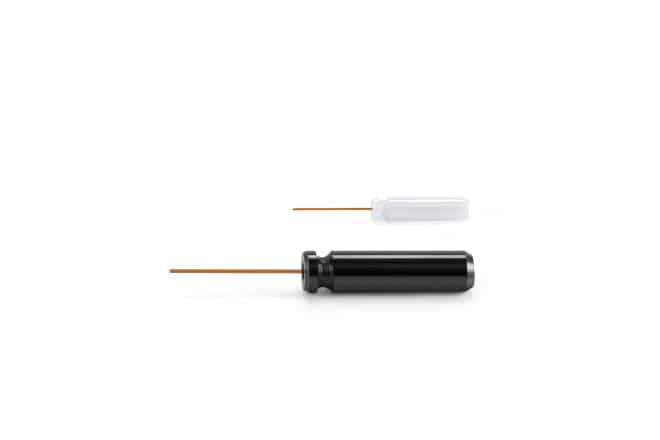

RWD fiber optic cannulas are used for in vivo optogenetics or fiber photometry. These optical fiber stubs are available with 1.25 mm or 2.5 mm ceramic cannulas. Fibers can be selected with various diameters and numerical appertures. Fiber lenght can be selected by the user – from 2 mm to 20 mm in 0.5 mm steps.

Ceramic sleeves and protective dust caps are also available.

Ordering

Ordering

Part No. Description (Length options: 2 mm – 20 mm, in 0.5 mm steps)
R-FOC-L200C-39NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.39NA, 20/pkg
R-FOC-L300C-39NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 300um Core, 0.39NA, 20/pkg
R-FOC-L400C-39NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.39NA, 20/pkg
R-FOC-F200C-39NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.39NA, 20/pkg
R-FOC-F300C-39NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 300um Core, 0.39NA, 20/pkg
R-FOC-F400C-39NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.39NA, 20/pkg
R-FOC-L200C-22NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.22NA, 20/pkg
R-FOC-L300C-22NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 300um Core, 0.22NA, 20/pkg
R-FOC-L400C-22NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.22NA, 20/pkg
R-FOC-F200C-22NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.22NA, 20/pkg
R-FOC-F300C-22NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 300um Core, 0.22NA, 20/pkg
R-FOC-F400C-22NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.22NA, 20/pkg
R-FOC-L200C-50NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.50NA, 20/pkg
R-FOC-F200C-50NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.50NA, 20/pkg
R-FOC-L400C-50NA Fiber Optic Cannulae with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.50NA, 20/pkg
R-FOC-F400C-50NA Fiber Optic Cannulae with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.50NA, 20/pkg
R-FOC-BL200C-39NA Fiber Optic Cannulae（Black） with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.39NA, 20/pkg
R-FOC-BL300C-39NA Fiber Optic Cannulae（Black） with Ø1.25 mm Ceramic Ferrule, 300um Core, 0.39NA, 20/pkg
R-FOC-BL400C-39NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.39NA, 20/pkg
R-FOC-BF200C-39NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.39NA, 20/pkg
R-FOC-BF300C-39NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 300um Core, 0.39NA, 20/pkg
R-FOC-BF400C-39NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.39NA, 20/pkg
R-FOC-BL100C-22NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 100um Core, 0.22NA, 20/pkg
R-FOC-BL200C-22NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.22NA, 20/pkg
R-FOC-BL300C-22NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 300um Core, 0.22NA, 20/pkg
R-FOC-BL400C-22NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.22NA, 20/pkg
R-FOC-BF100C-22NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 100um Core, 0.22NA, 20/pkg
R-FOC-BF200C-22NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.22NA, 20/pkg
R-FOC-BF300C-22NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 300um Core, 0.22NA, 20/pkg
R-FOC-BF400C-22NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.22NA, 20/pkg
R-FOC-BL200C-50NA Fiber Optic Cannulae （Black）with Ø1.25 mm Ceramic Ferrule, 200um Core, 0.50NA, 20/pkg
R-FOC-BF200C-50NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 200um Core, 0.50NA, 20/pkg
R-FOC-BL400C-50NA Fiber Optic Cannulae（Black） with Ø1.25 mm Ceramic Ferrule, 400um Core, 0.50NA, 20/pkg
R-FOC-BF400C-50NA Fiber Optic Cannulae （Black）with Ø2.5 mm Ceramic Ferrule, 400um Core, 0.50NA, 20/pkg
R-MS-1.25 Ceramic Sleeves, Φ1.25mm, pkg of 20pcs
R-MS-2.5 Ceramic Sleeves, Φ2.5mm, pkg of 20pcs
R-BMS-1.25 Black Ceramic Sleeves, Φ1.25mm, pkg of 20pcs
R-BMS-2.5 Black Ceramic Sleeves, Φ2.5mm, pkg of 20pcs
R-DC-1.25 Ceramic Ferrules Protective Cap, Φ1.25mm, pkg of 200pcs
R-DC-2.5 Ceramic Ferrules Protective Cap, Φ2.5mm, pkg of 200pcs
