Probe Layout
NeuroNexus silicon probes can be configured by
- Site/Channel Count
- Shank Length
- Site Spacing
- Site Area
- Number of Shanks
- Shank Spacing
This pdf catalog gives an overview over the various options.
Connector Package
For acute recordings with 16 channels, the preferred connector packages are the following:

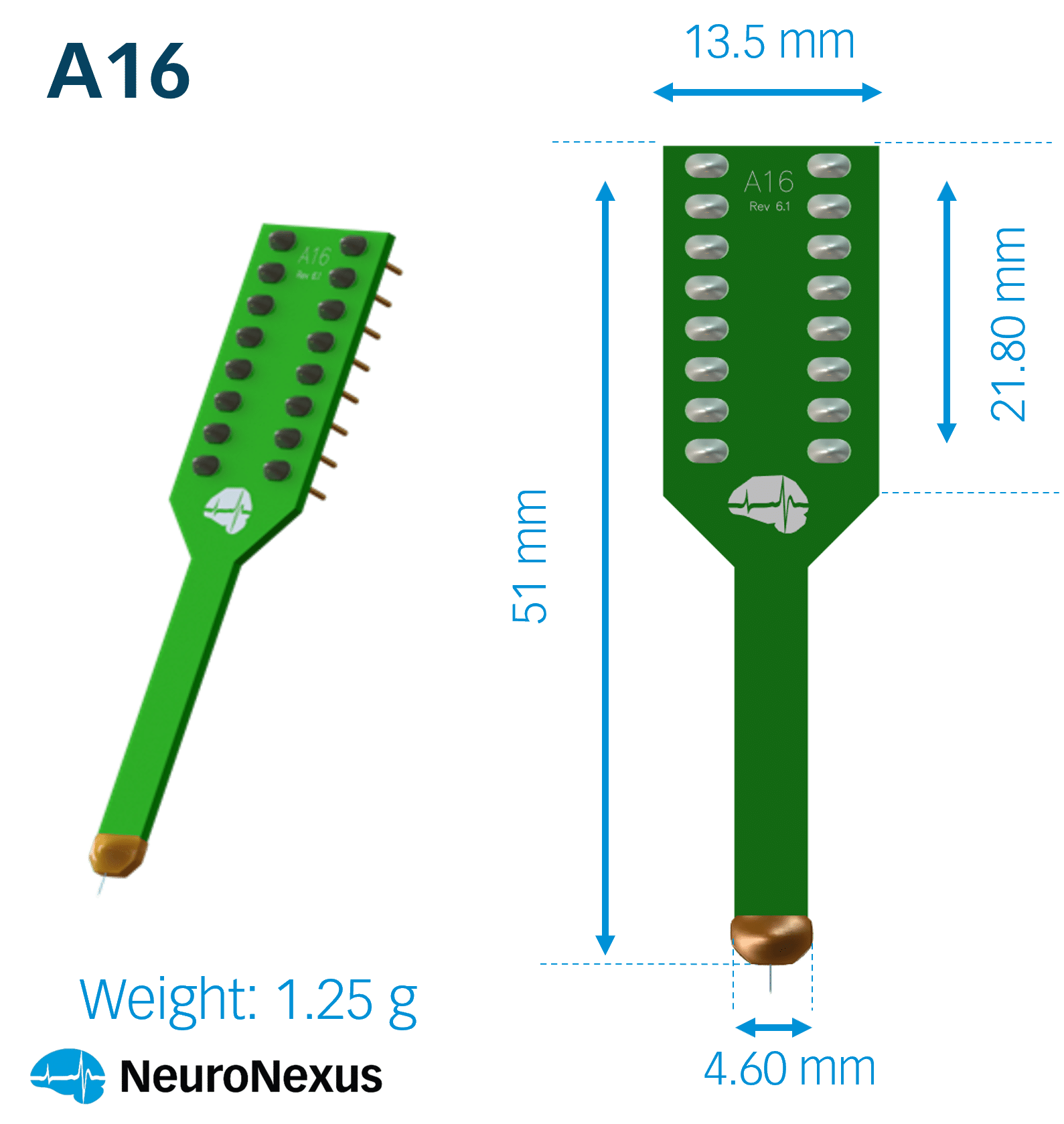

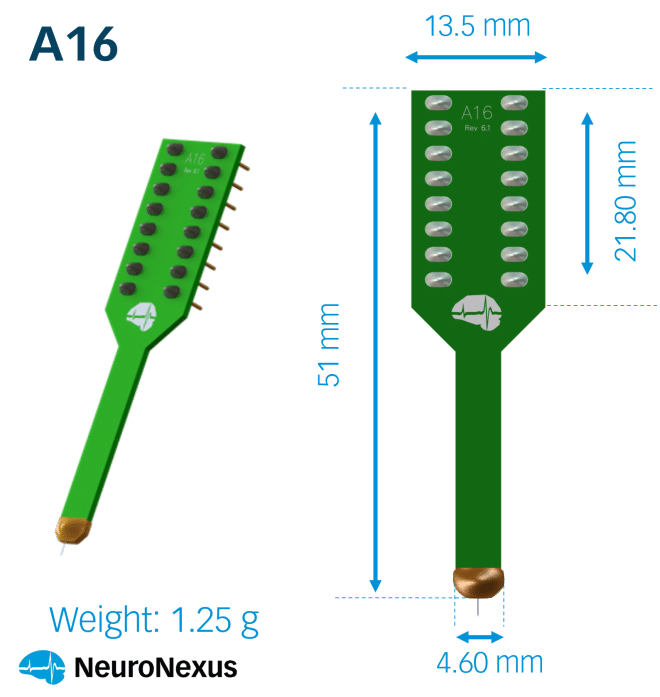

- A-Series (acute) is the standard probe package for acute experiments. The package is easy to handle and can be used with standard stereotaxic frames and multichannel recording headstages.

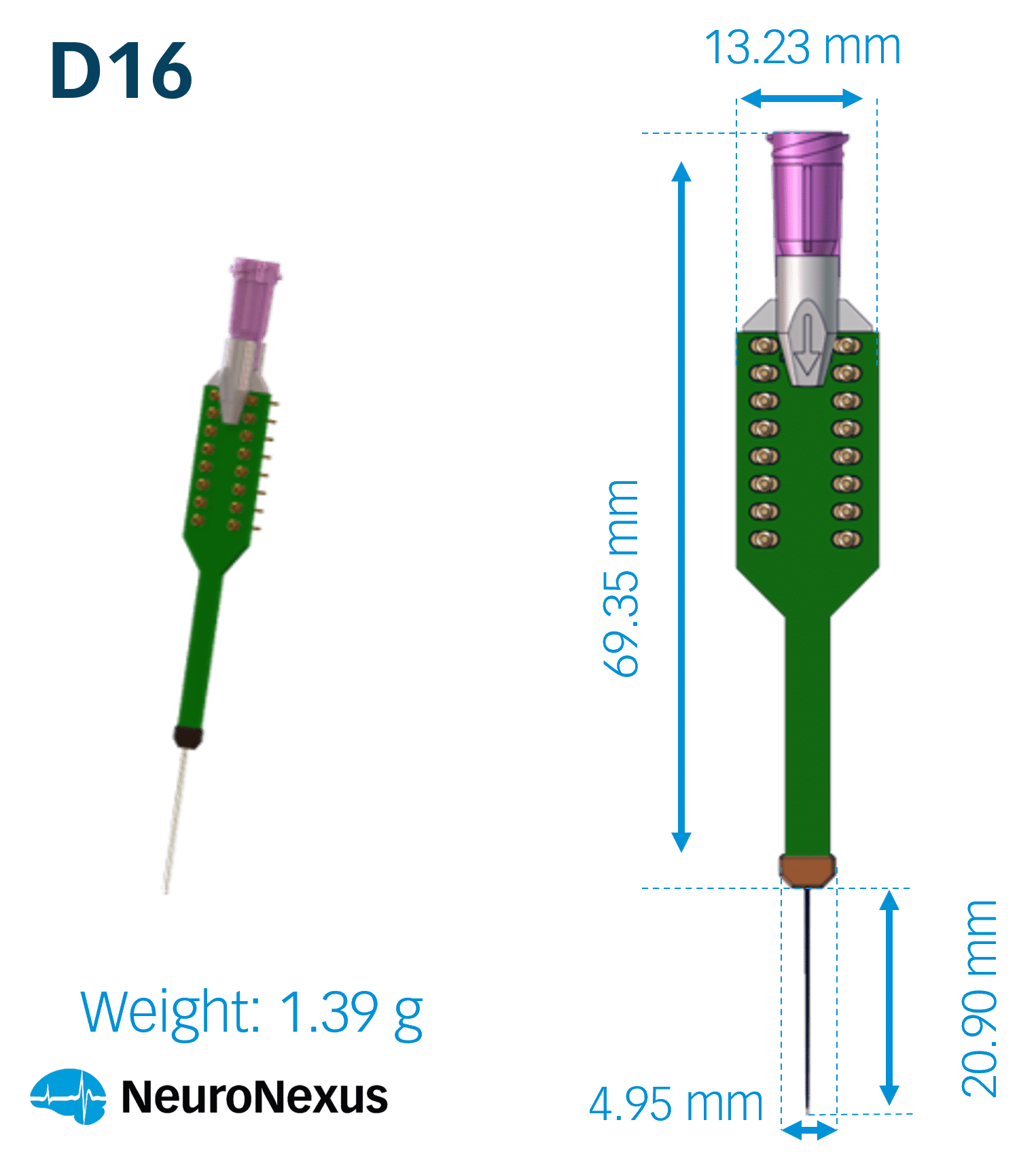

- D-Series (drug delivery) come with attached fluidic channels for drug delivery, and chemical sampling.

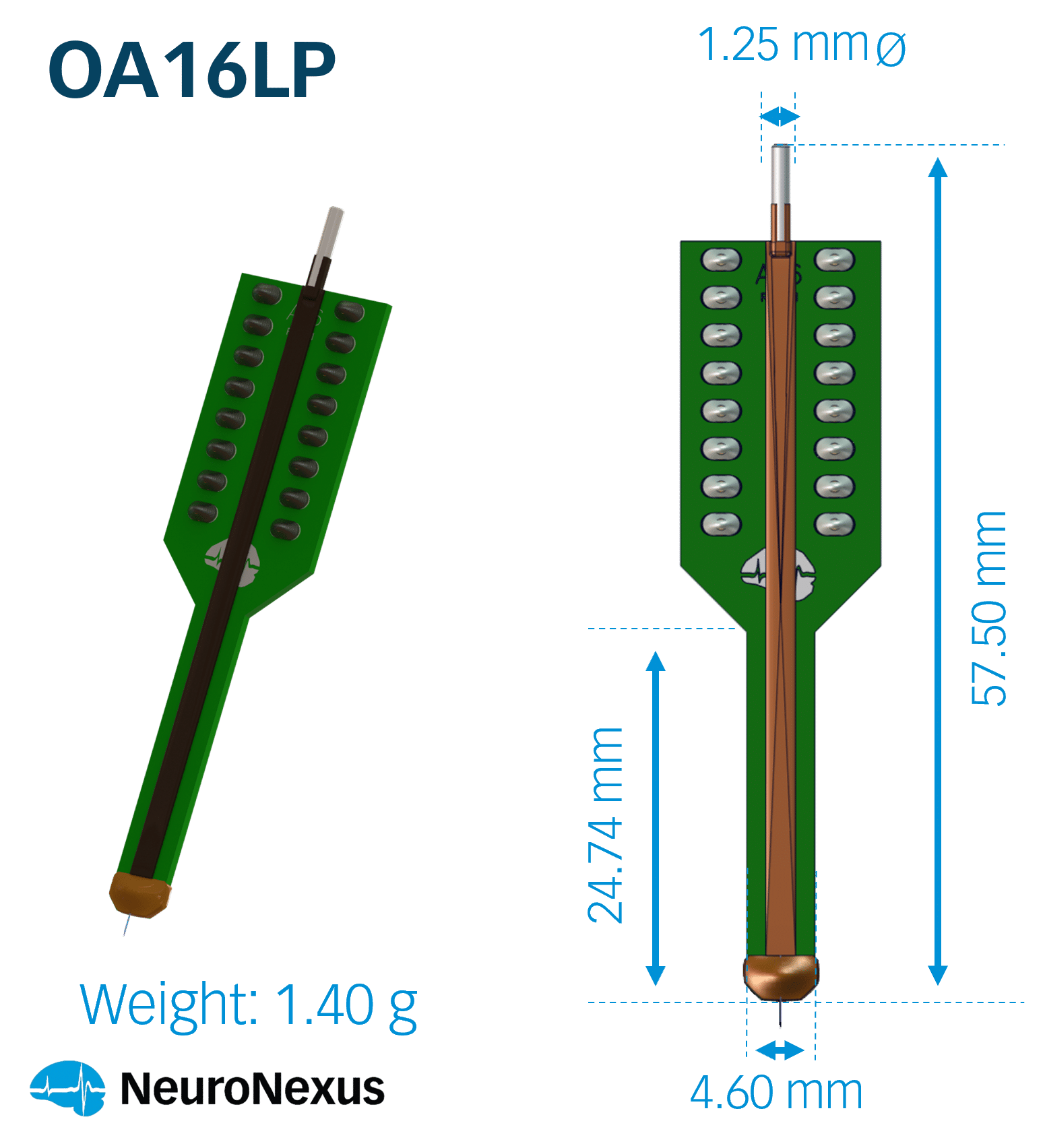

- O-Series (optogenetics) come with attached optical fiber(s) to enable optical stimulation combined with precise neural recording in optogenetics experiments.
